Mac 520 DAB

Multimedia receiver with 17 cm widescreen display and DAB+ support

Multimedia receiver with 17 cm widescreen display and DAB+ support

TFT display in widescreen format, DAB+ tuner and total power output of 200 watts: The MAC 520 DAB multimedia receiver from Mac Audio is convincing thanks to touch-screen control with excellent operating convenience and a high degree of flexibility. The multimedia receiver demonstrates its versatility directly with the reliable function as a hands-free system combined with Bluetooth and an external microphone. Audio files from a smartphone can also be played back in the car in wireless mode via the sound system. In addition to the Bluetooth connection, which allows up to 5 devices to be paired, the new MAC 520 DAB receiver also offers the possibility to connect a USB storage device and play back both music as well as photo and video files. Those who don´t want to do without a stationary navigation system in their car can turn the MAC 520 DAB into a fully-fledged naviceiver with the MAC 500 NAV-SET, which is available separately.

Technical specifications


Video
  • Output: 1 Vp-p (75-ohm)
  • Input: 1 Vp-p (75-ohm)
  • Format: PAL/NTSC (auto-detection)
Bluetooth
  • Bluetooth module with AVRCP/A2DP profile

Highlights

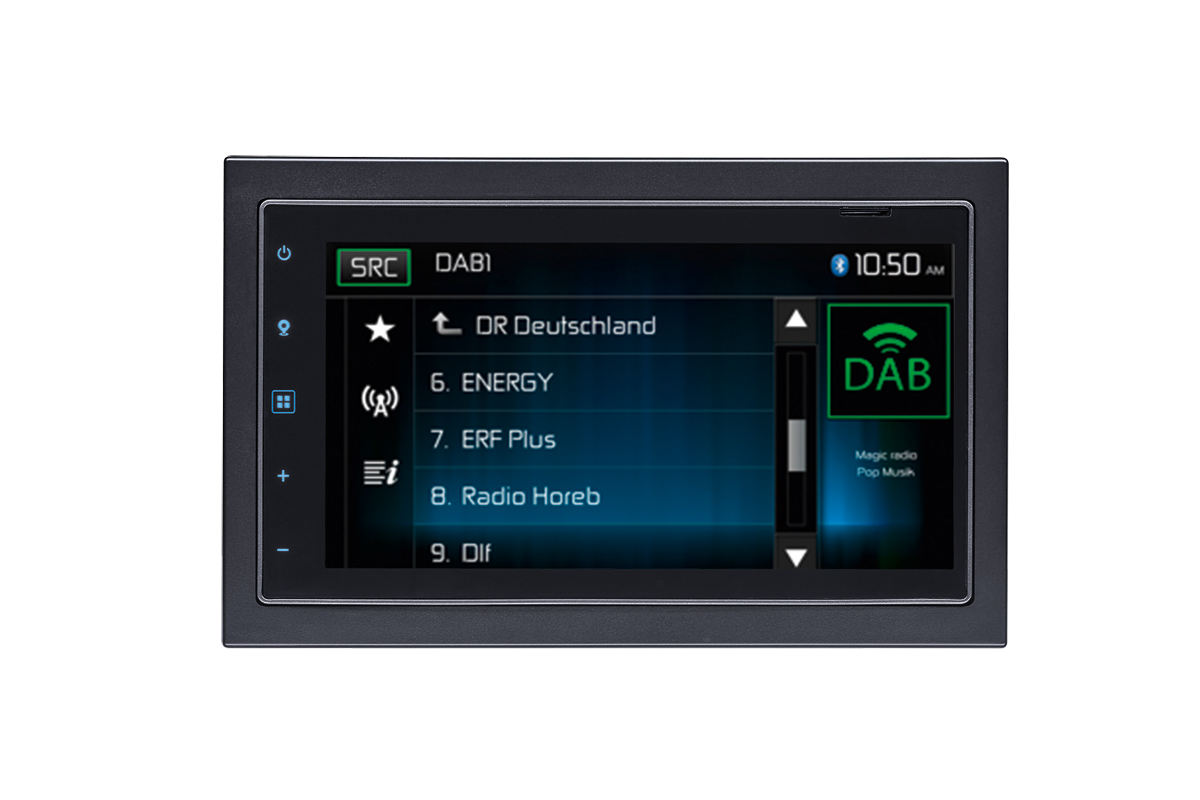

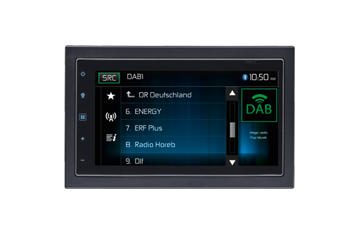

DAB+ Tuner
  • DAB-RDS switching (DAB-DAB/DAB-RDS/DAB-OFF/DAB-ALL)
  • Supports DAB, DAB+ and DMB-A formats
  • BAND III (Europe): 174.928 MHz -239.200 MHz (channel 5A - channel 13F)
  • L-BAND (Europe): 1.452960 GHz - 1.490624 GHz (channel LA – channel LW)
  • Sensitivity: -100 dBm (Band III) / -100 dBm (L-BAND)
  • Alternate channel sensitivity: 40 dB
  • Memorizes 30 DAB channels
  • Broadcasting group search / Service search
  • Auto Scan / Service Scan / automatic and manual search function
  • Displays broadcasting group/station name and info
  • DAB antenna included for optimum reception
  • DAB antenna connection type: FAKRA
Video
  • Output: 1 Vp-p (75-ohm)
  • Input: 1 Vp-p (75-ohm)
  • Format: PAL/NTSC (auto-detection)
Bluetooth
  • Bluetooth module with AVRCP/A2DP profile
Features
  • NAV ready: Navigation possible with separately available navigation kit MAC 500 NAV-SET

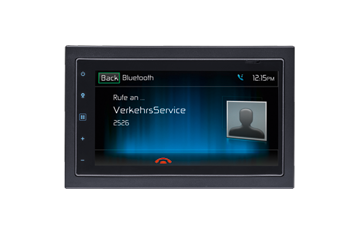

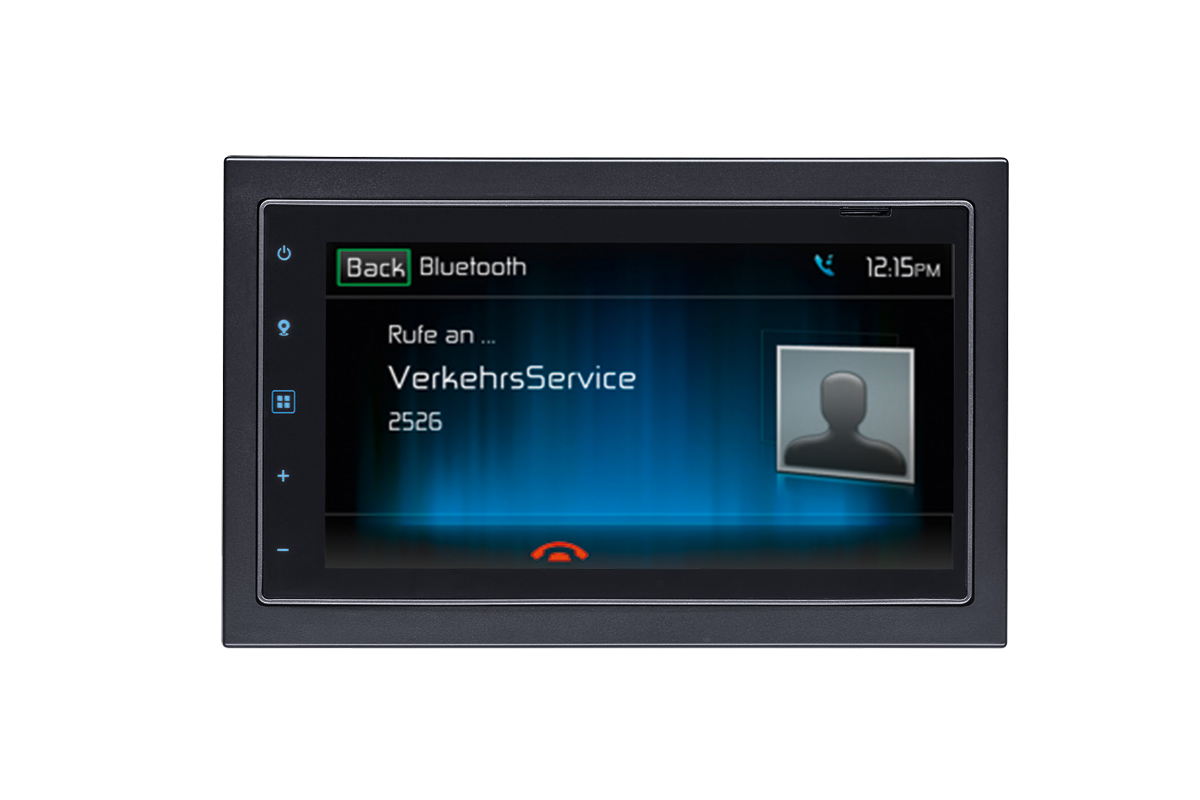

  • Bluetooth® hands-free operation with external microphone and audio streaming (A2DP/AVRCP)
  • Automatic linking of up to 5 mobile phones
  • DAB+ tuner with DAB/RDS switching
  • FM/AM tuner with RDS function
  • AF (Alternative frequencies), CT (Clock Time), EON (Enhanced Other Networks), PS (Programme Service), PTY (Programme Type), RT (Radio Text), TA (Traffic Announcements)

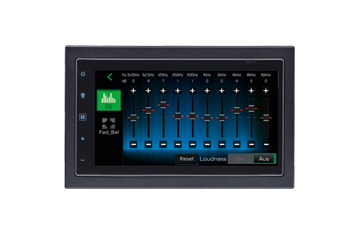

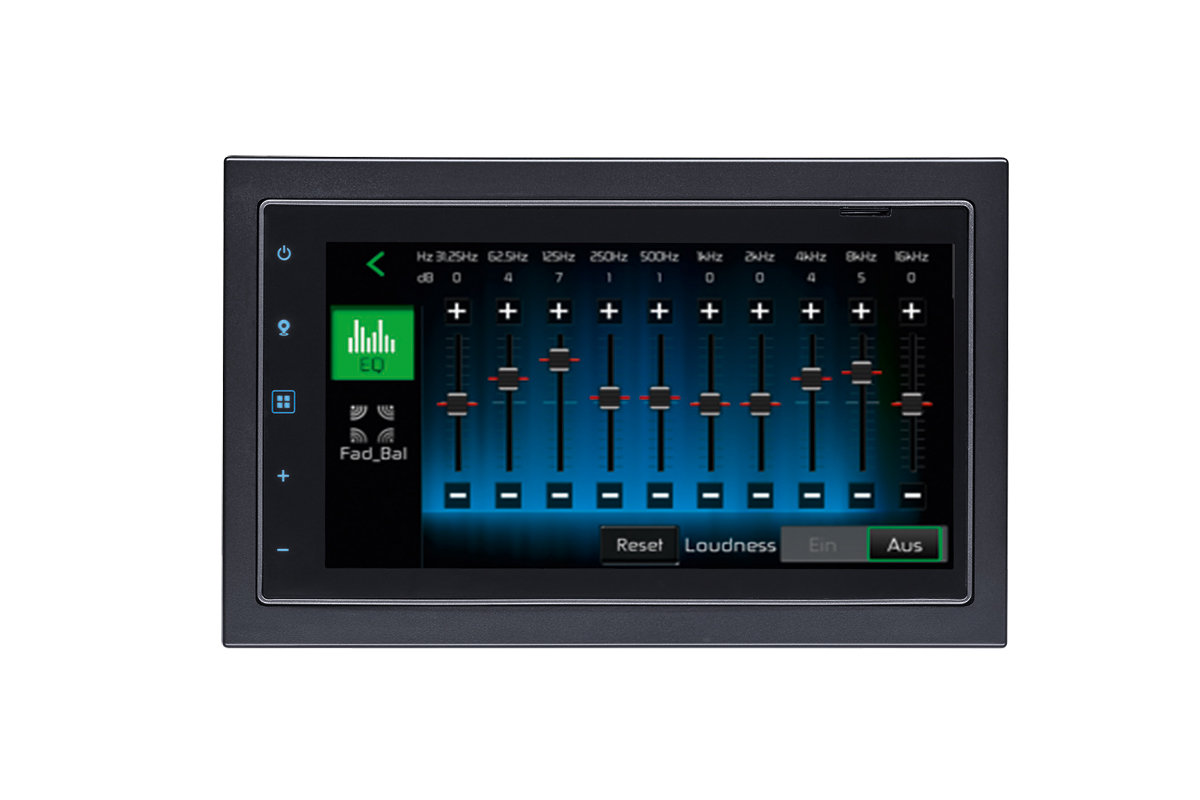

  • 10-band equalizer
  • Subwoofer Control
  • Rear composite video output for connecting an additional monitor

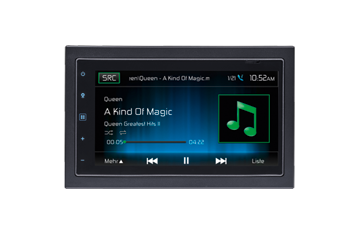

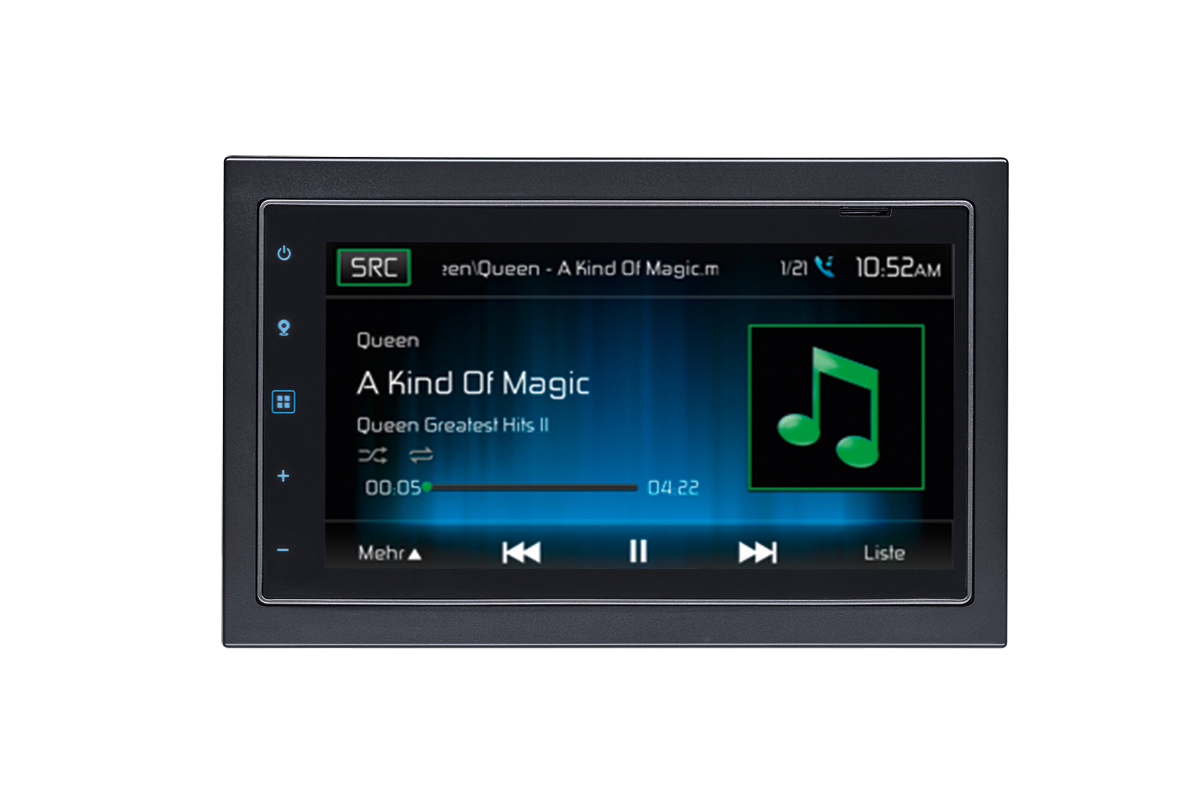

  • Rear USB 2.0 input with 500 mA charge current (32 GB max)
  • Rear A/V composite input
  • 5 line audio high level outputs 2V/200 ohms
  • Video input for rear view camera (normal and opposite hand), automatic switch-on of rear camera mode
  • Power output: 4 x 50 watts, total power output: 200 watts
  • Freely programmable Steering Wheel Control (SWC) to be connected via optionally available adapter
  • Display with dimming function (4 settings) and auto blackout function
  • Windows 6.0 CE real-time operating system with intuitive user interface
  • Rear USB 2.0 input with 500 mA charge current (32 GB max)
  • Push to Talk function (voice control) for Android / iPhone mobiles
  • Automatic switch-on of rear view camera mode (normal and opposite hand)
  • DIN chassis dimensions: 178 x 100 x 162 mm
