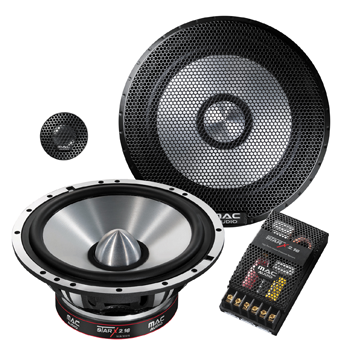

Star X 2.16

High-performance 2-way component system

Exclusive, premium components generate an audiophile performance from the star of 2-way component systems - the Star X 2.16.

High-performance 2-way component system


The Star X 2.16 2-way component system has not only been provided with a glamorous name, but it has also been equipped with premium quality components. A 1.5" high-power voice coil, an extremely powerful magnet system and a Klippel-optimised, symmetrical magnetic field make the system a high performance star product! An audiophile performance is generated by the aluminium cone with aluminium phase plug and a highly flexible rubber surround, which enables maximum cone throw. The corresponding 25 mm fabric dome tweeter has been designed with an additional housing volume for a particularly spatial treble range.

Test reviews

What do trade magazines say about this product?

Technical specifications


Principle
  • 2 way compo system
Power Handling
  • 200 / 600 Watts
Impedance
  • 4 Ohms
Crossover frequencies
  • 3000 Hz
Frequency range
  • 30 – 30000 Hz
Sound pressure level
  • 91 dB
DIN-Ø
  • 25 mm tweeter
  • Woofer: 6.5”
Outer diameter
  • Tweeter: 47 mm
  • Woofer: 183 mm
Cutting out
  • 35 mm tweeter
  • Woofer: 142 mm
Mounting depth
  • Woofer: 71 mm
  • Tweeter: 22 mm
Mounting hight
  • Tweeter: 18 mm
  • Woofer: 22 mm

Highlights


Features

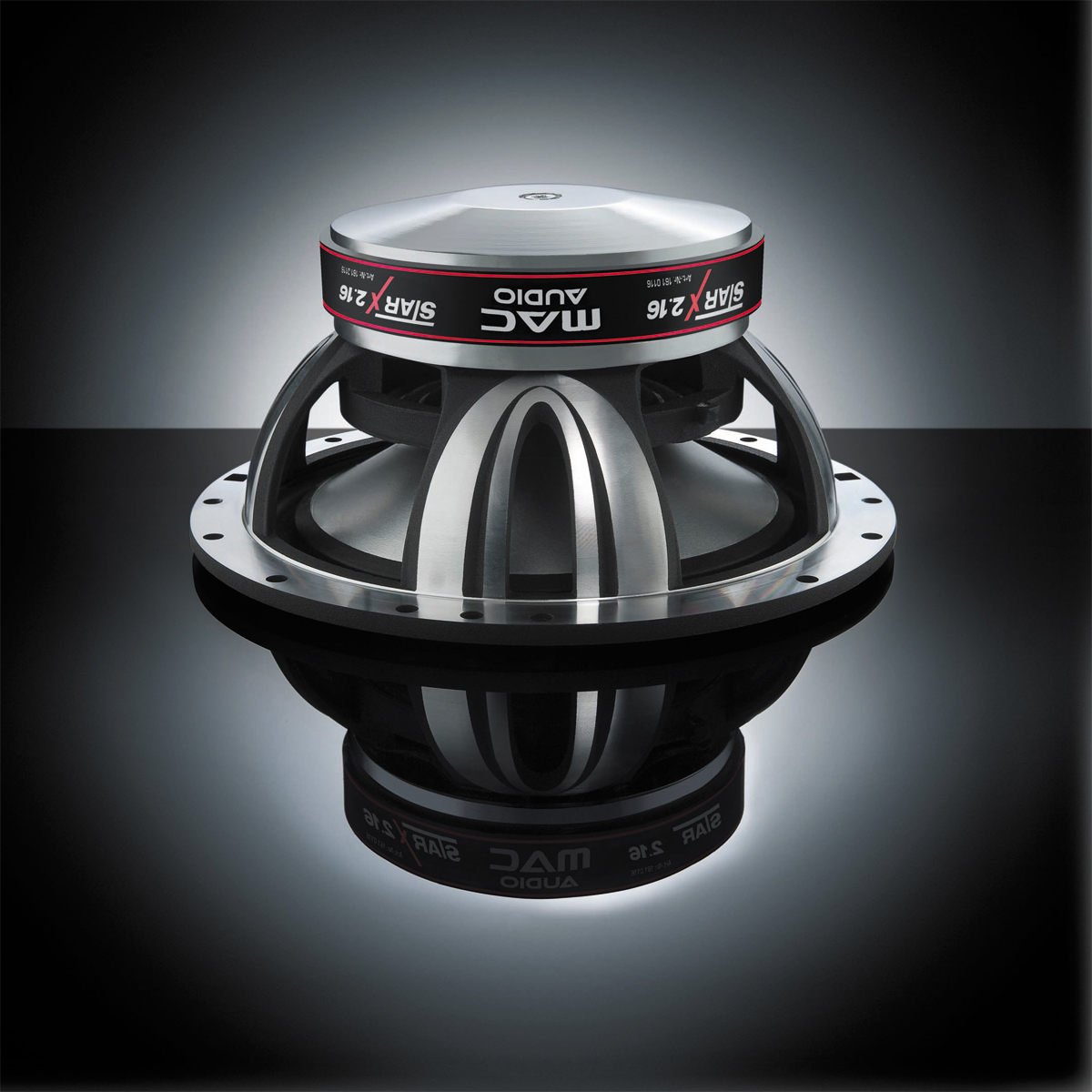

  • DIN aluminium basket with diamond cut and additional voice coil ventilation
  • 1.5“ high power voice coil
  • High-power magnet system (Y 35) with chromed pole plate
  • Highly flexible rubber surround for maximum cone travel

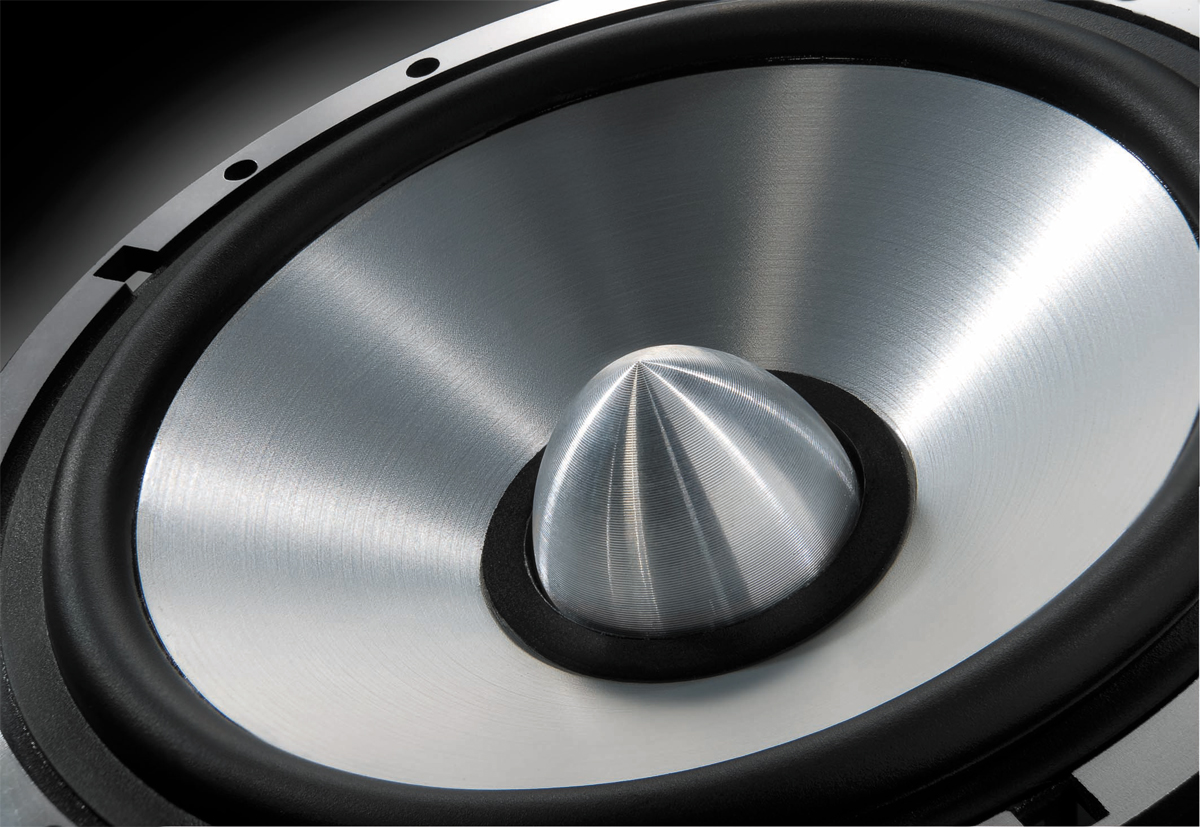

  • Aluminium cone and aluminium phase plug
  • Gold-plated terminal
  • External crossover including adjustable tweeter phase and tweeter level control
  • Black high-gloss painted loudspeaker cover including diamond
    cut aluminium logo
Principle
  • 2 way compo system
Loudspeaker drivers
  • DIN aluminium basket with diamond cut and additional voice coil ventilation
  • Klippel®-optimized symmetrical magnetic field
  • Highly flexible rubber surround for maximum cone travel
  • Aluminium cone and aluminium phase plug
  • High-power magnet system (Y 35) with chromed pole plate

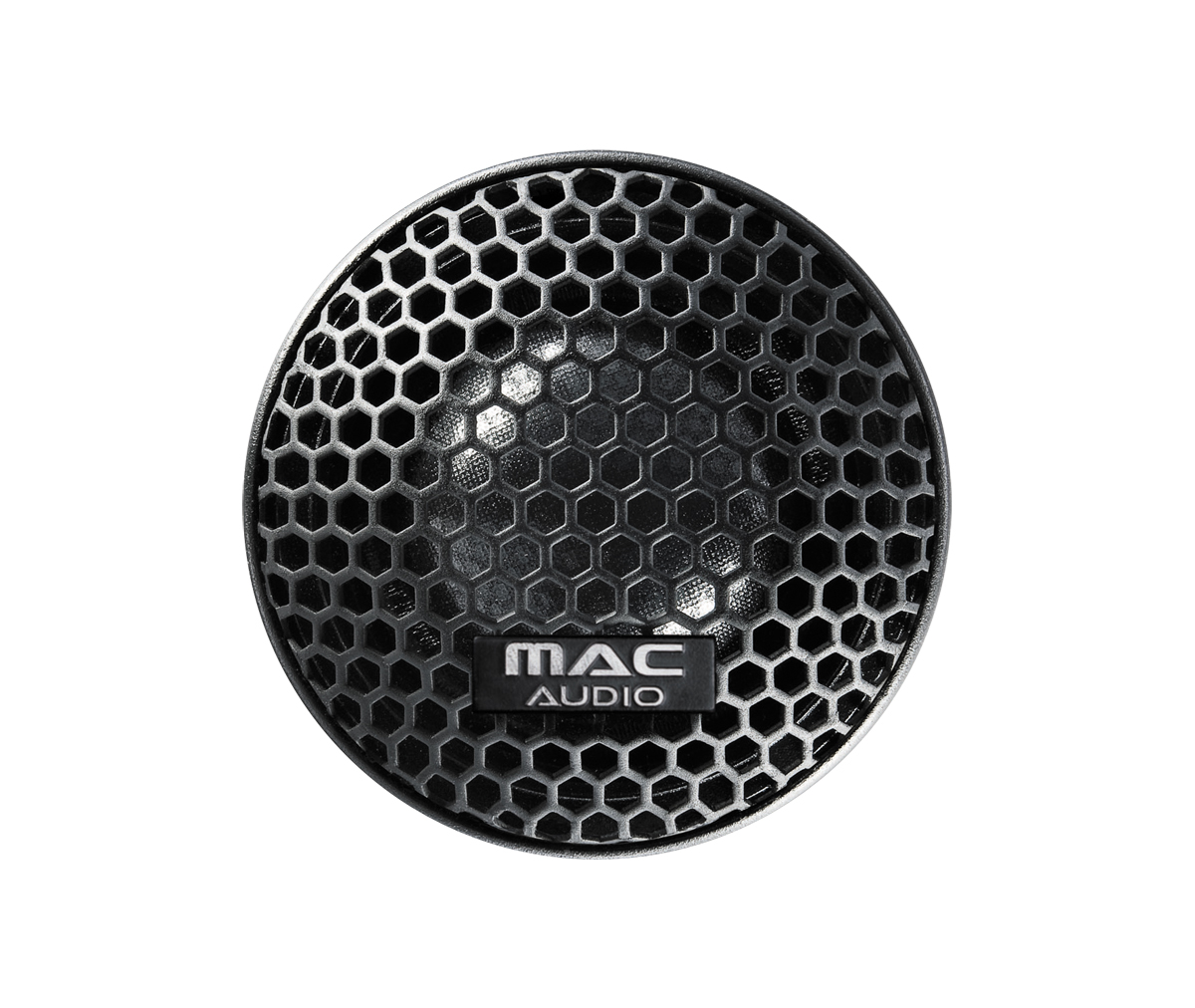

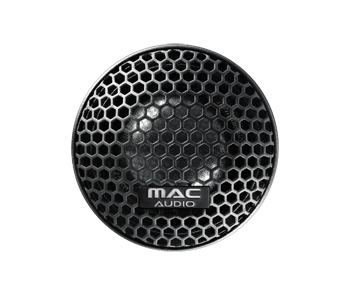

Tweeter
  • 25 mm silk dome tweeter with additional enclosure
  • External crossover including adjustable tweeter phase and tweeter level control

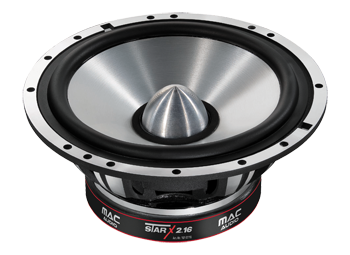

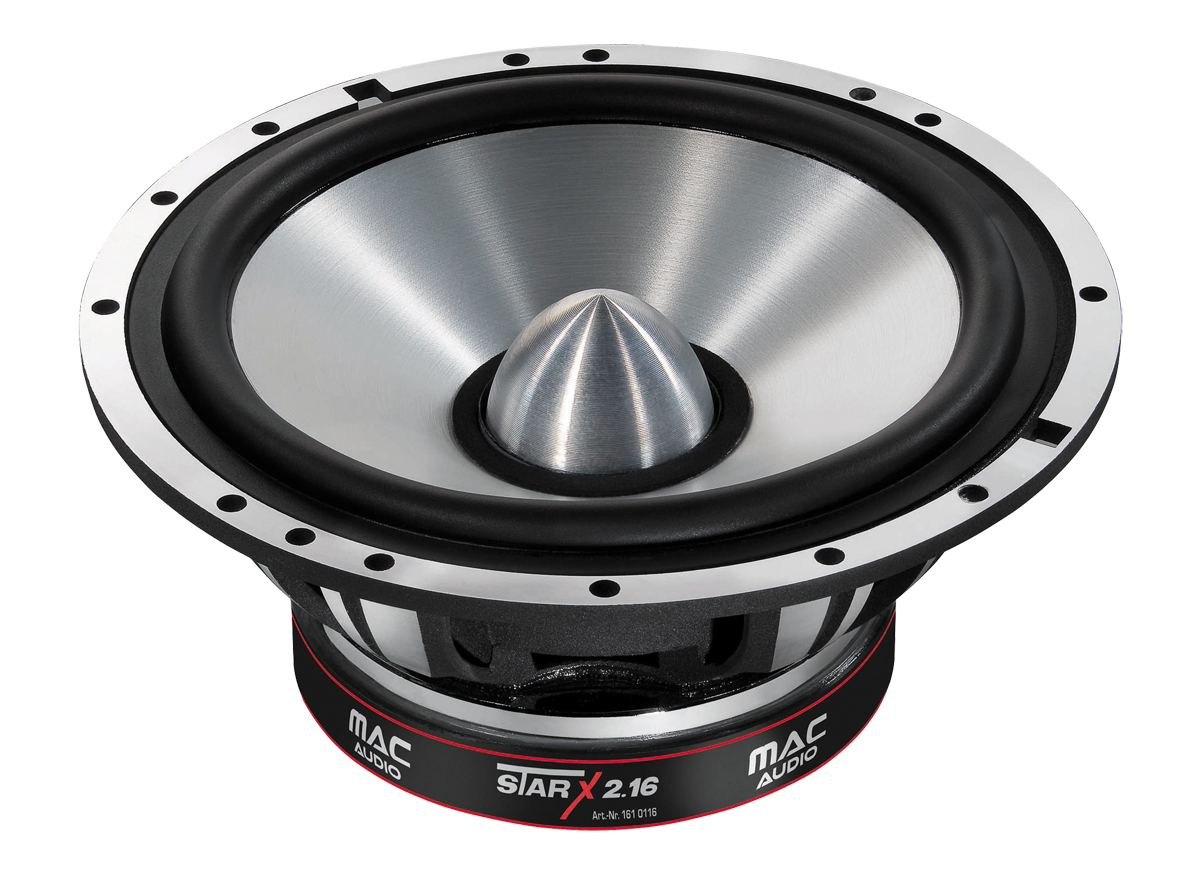

Woofer
  • 1.5“ high power voice coil
  • Aluminium cone
