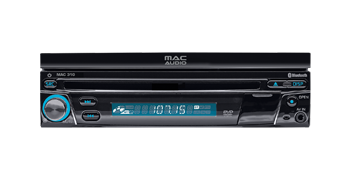

MAC 310

1 DIN 7" widescreen multimedia receiver

The compact MAC 310 1 DIN receiver with its retractable and extra-thin 7“ display delivers an output of 160 watts to connected speakers and is equipped with Bluetooth. Hands-free operation and Bluetooth audio streaming with up to 5 tethered mobile phones possible without any difficulty.

1 DIN 7" widescreen multimedia receiver

The MAC 310 from Mac Audio is a compact 1 DIN receiver with a retractable, extra thin 7” display. The high-gloss front of the 17.8 cm TFT monitor with touch screen and LED back light delivers strong colours and ensures perfect readability from any viewing angle. The Mac 310 supplies connected loudspeakers with 4 x 40 watts and therefore offers a maximum total output of 160 watts. Equipped with a Bluetooth hands-free feature and external microphone, you can also use it conveniently and comfortably for calls with your smartphone. Up to 5 mobile phones can be tethered to the MAC 310 without the connection having to be constantly re-established. Bluetooth Audio Streaming also allows you to enjoy music in the car in wireless mode. Remote control via the steering wheel is possible with an optional adapter, with a video input also provided for a reversing camera with automatic switching to the rear view camera.

Technical specifications


DVD/CD-Player
  • Screen formats: cinema, normal and off (standby)
  • Signal to noise ratio: >95 dBA
  • Dynamic range: >95 dB
  • Frequency response: 20 Hz to 20 kHz, -3 dB
  • Compatible disc media: DVD +/- R/ +/- RW (single and dual layer) and CD-R/-RW
  • Compatible media formats: CD-DA, MP3, WMA, VCD, SVCD, Xvid, AVI, MPEG ½, AAC
  • Channel separation: > 60 dB at 1 kHz
  • D/A converter: high performance 24-bit / 192 kHz sample rate, multi-bit Sigma-Delta modulator
Video
  • Format: PAL/NTSC (auto-detection)
  • Output: 1 Vp-p (75-ohm)
  • Input: 1 Vp-p (75-ohm)
Power Ratings
  • Signal to noise ratio: 70 dBA below reference (reference: 1 watt, 4 ohms)
  • Frequency response: 20 Hz – 20 kHz, -3 dB (AUX input used as reference input)
Monitor
  • Screen type: high definition TFT monitor with LCD (Liquid Crystal Display)
  • Resolution: 1,152,000 sub pixels, 800x3 (W) x 480 (H)

Highlights


Monitor
  • Screen type: high definition TFT monitor with LCD (Liquid Crystal Display)
  • Resolution: 1,152,000 sub pixels, 800x3 (W) x 480 (H)
Power Ratings
  • Signal to noise ratio: 70 dBA below reference (reference: 1 watt, 4 ohms)
  • Frequency response: 20 Hz – 20 kHz, -3 dB (AUX input used as reference input)
DVD/CD-Player
  • Screen formats: cinema, normal and off (standby)
  • Signal to noise ratio: >95 dBA
  • Dynamic range: >95 dB
  • Frequency response: 20 Hz to 20 kHz, -3 dB
  • Compatible disc media: DVD +/- R/ +/- RW (single and dual layer) and CD-R/-RW
  • Compatible media formats: CD-DA, MP3, WMA, VCD, SVCD, Xvid, AVI, MPEG ½, AAC
  • Channel separation: > 60 dB at 1 kHz
  • D/A converter: high performance 24-bit / 192 kHz sample rate, multi-bit Sigma-Delta modulator
Video
  • Format: PAL/NTSC (auto-detection)
  • Output: 1 Vp-p (75-ohm)
  • Input: 1 Vp-p (75-ohm)
Features
  • Bluetooth hands-free operation with external microphone and audio streaming (A2DP/AVRCP)
  • Automatic linking of up to 5 mobile phones
  • AM/FM-Radio with RDS-Function
  • Subwoofer control (level, x-over)
  • High gloss front
  • Extra thin display
  • 17,8 cm/7” digital TFT monitor with LCD touchscreen and LED Backlight
  • Multimedia DVD/CD/Xvid/MP3 player
  • Made for iPod/Made for iPhone
  • Video input for rear view camera (normal and opposite hand), automatic switch-on of rear camera mode
  • Power output: 4 x 40 watts, total power output: 160 watts
  • Freely programmable Steering Wheel Control (SWC) to be connected via optionally available adapter
  • Front and rear A/V input (3.5 mm/composite)
  • Remot Control
