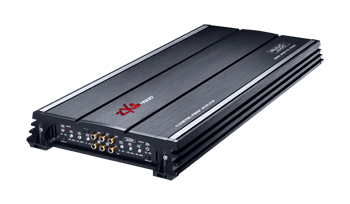

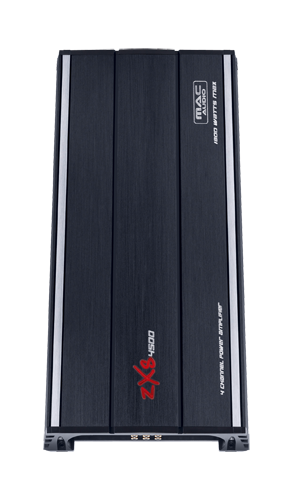

ZXS 4500

Powerful 4-channel amplifier

With maximum power reserves, stable and high quality signal transmission, flexibility and reliability, the ZXS 4500 is the flagship 4-channel amplifier in the ZXS series.

Powerful 4-channel amplifier

Mac Audio ups the ante again with its ZXS 4500 and provides the 4-channel amplifier, which is stable at 2 ohms, with ample power reserves and a maximum output of 200 watts per channel. The RCA jacks, power terminals and speaker terminals on the ZXS 4500 are completely gold-plated to ensure perfect signal transmission. The ZXS 4500 naturally also features an effective 3-way protective circuit, a channel mode selector switch (2/4 CH) and convenient bridging/tri-mode functionality. The solid aluminium heatsink, which features a black hairline design and illuminated ZXS logo, ensures optimum dissipation of the generated heat.

Technical specifications


Max. power output into 4 ohms,
14.4 V (sine burst 2:8, 1 kHz)
  • 4 x 300 W / 2 x 900 W
Max. power output into 2 ohms,
14.4 V (sine burst 2:8, 1 kHz)
  • 4 x 450 W
RMS power output into 2 ohms, 14.4V
(DIN 45 324)
  • 4 x 200 W
RMS power output into 4 ohms, 14.4V
(DIN 45 324)
  • 4 x 150 W / 2 x 400 W
Frequency response
  • 5 Hz – 50 kHz (-3 dB)
THD
  • < 0,05 % (1 kHz)
Input sensivity
  • 0.2 – 4 V
Signal-to-noise ratio (A-weighted)
  • > 100 dB
Dimensions (W x H x D)
  • 540 x 50 x 248 mm

Highlights


Features
  • Illuminated ZXS badge
  • Solid aluminium heatsink with black hairline design
  • Encapsulated and gold-plated power and speaker connectors
Connections
  • Gold plated RCA jacks
  • Gold-plated terminal
