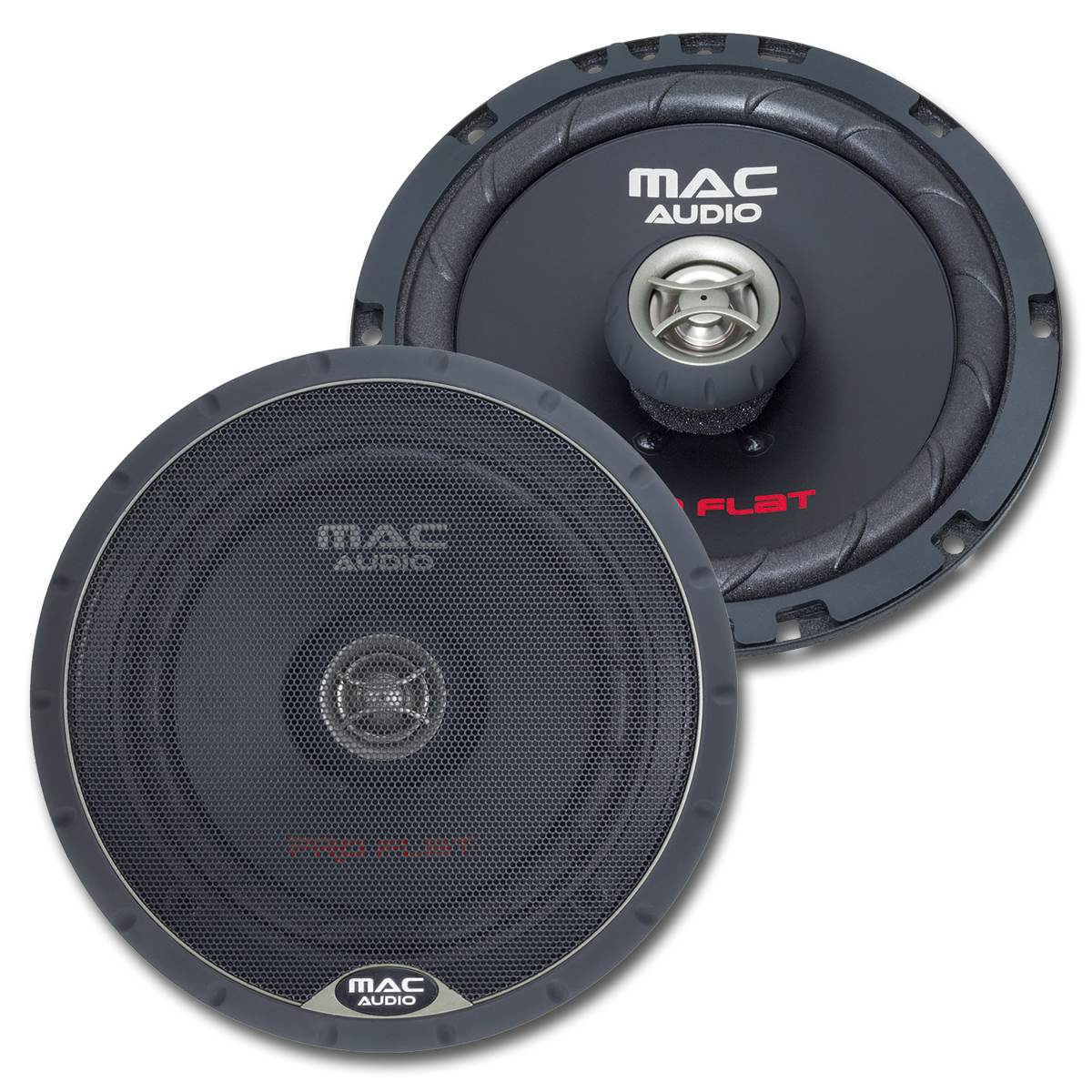

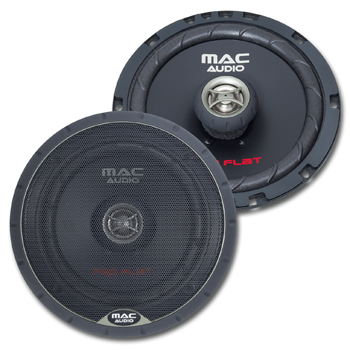

Pro Flat 16.2

2-way coaxial system with low installation depth

The Pro Flat 16.2 top of the range coaxial system delivers an excellent sound despite its low installation depth.

2-way coaxial system with low installation depth

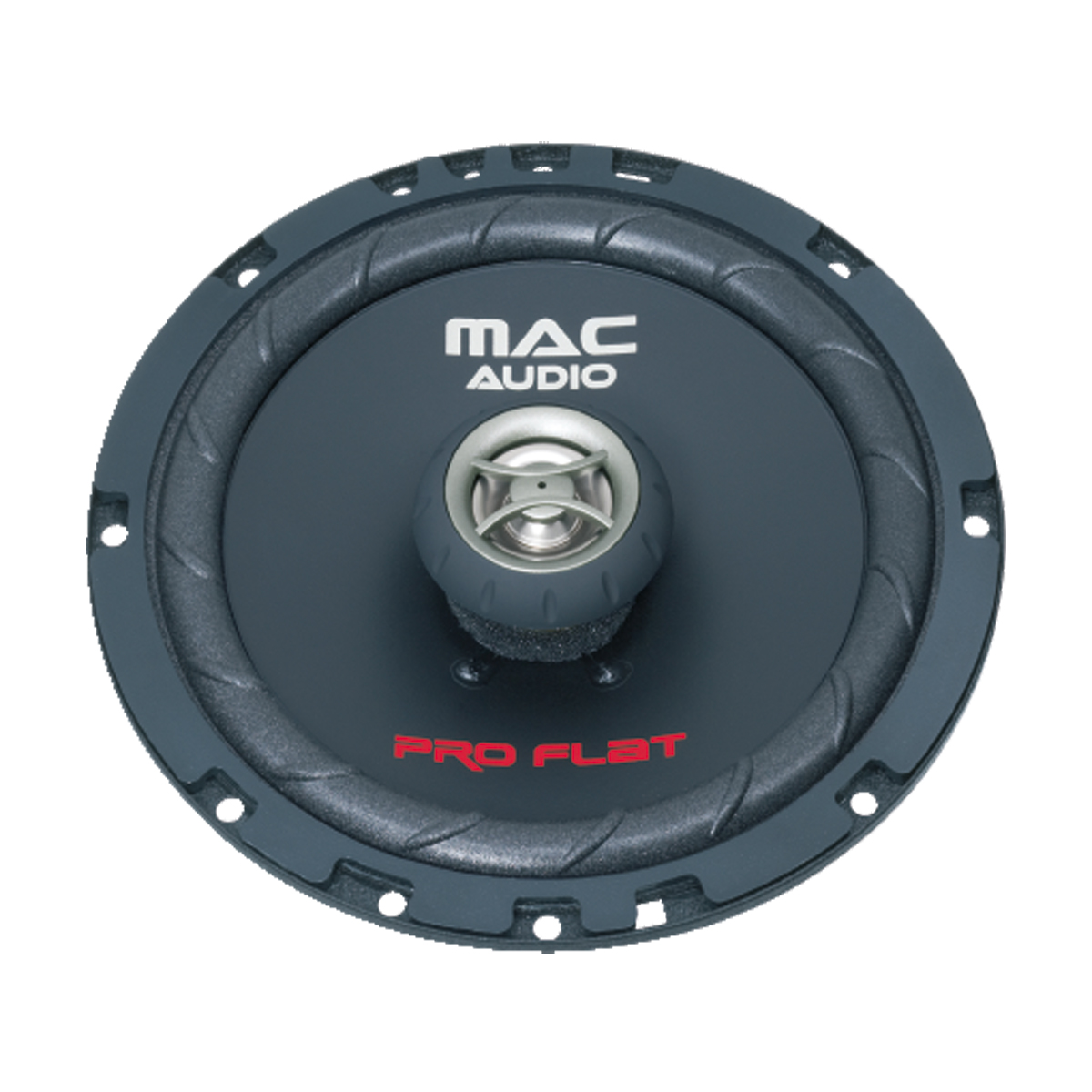

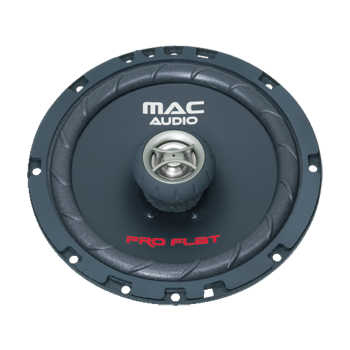

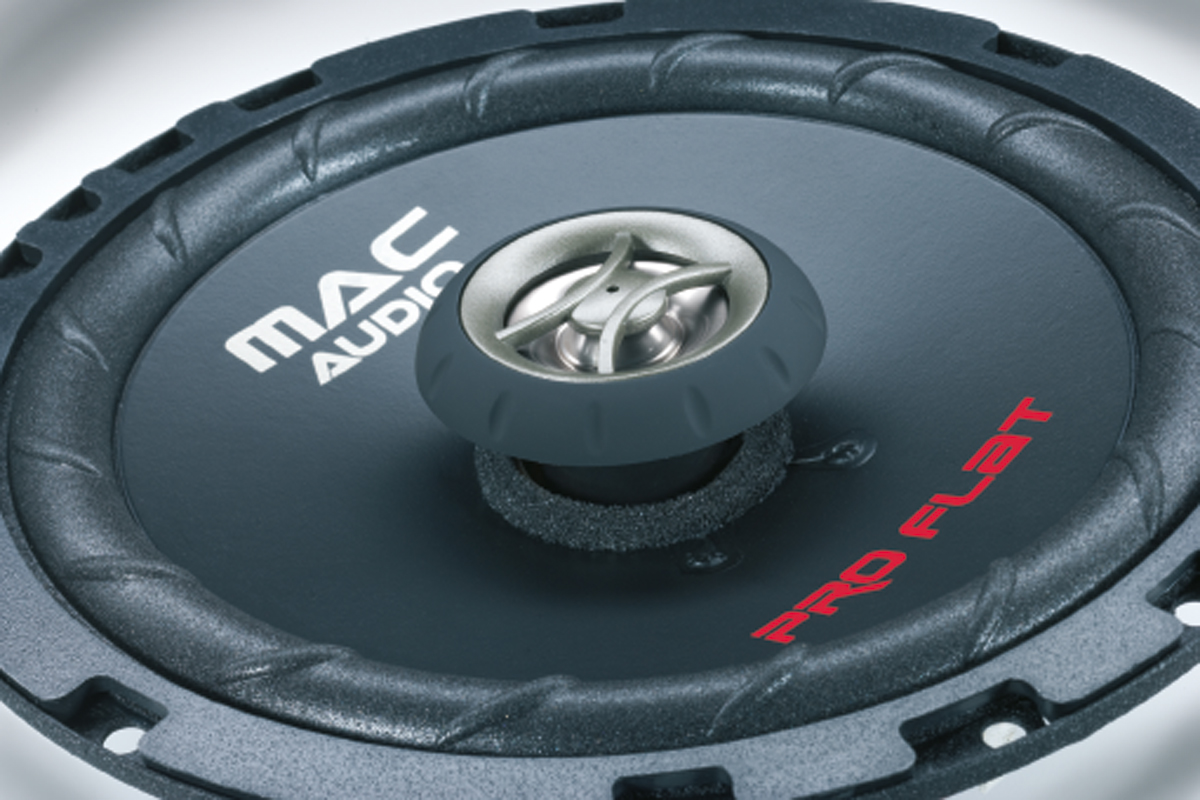

The top of the range coaxial system in the Pro Flat series requires an installation depth of just 42 mm and delivers an excellent sound thanks to clever engineering technology. Simple installation is assured due to its low installation depth. The internal high performance ferrite magnet system drives a coated paper cone with a dynamic foam surround, which ensures optimum efficiency. The centrally located titanium-coated polycarbonate tweeter ensures a clean upper frequency range. A chic look and reliable protection is provided by the multi-part grille, which includes a diamond cut logo and black rubber coating.

Technical specifications


Principle
  • 2 way coaxial system
Power Handling
  • 70 / 250 watts
Impedance
  • 4 Ohms
Crossover frequencies
  • 3400 Hz
Frequency range
  • 36 – 28000 Hz
Sound pressure level
  • 91 dB
DIN-Ø
  • Woofer: 6.5”
Outer diameter
  • Woofer: 196 mm
Cutting out
  • Woofer: 143 mm

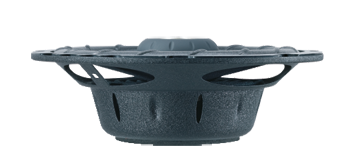

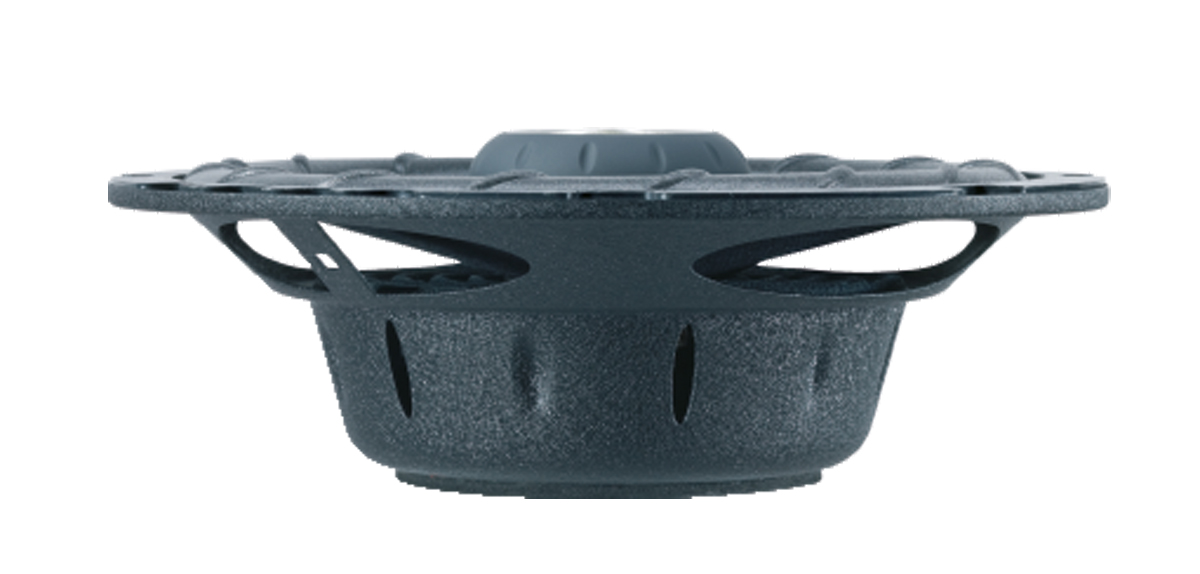

Mounting depth
  • Woofer: 45 mm
Mounting hight
  • Woofer: 19 mm

Highlights


Features

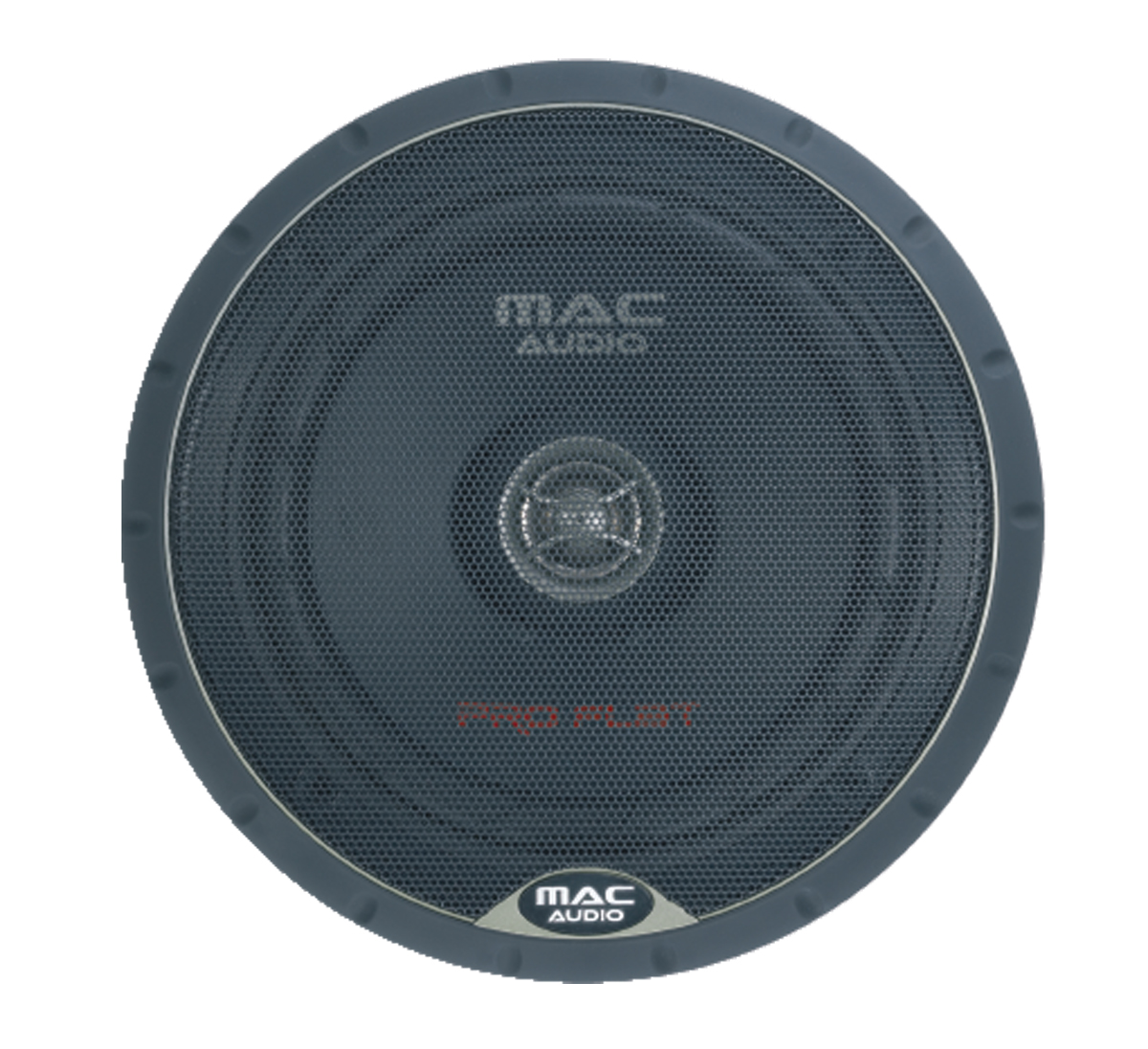

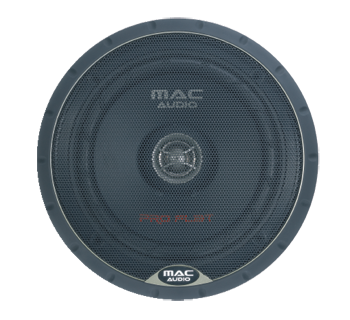

  • Multi-part protection grille including diamond cut logo
  • Euro DIN basket for universal usage
  • Dynamic foam surround for high efficiency
  • Internal high power ferrite magnet system
  • Solid steel basket with low-resonance structured coating
  • Low mounting depth due to Pro Flat technology
Principle
  • 2 way coaxial system
Loudspeaker drivers
  • Euro Din basket for universal installation
  • Dynamic foam surround for high efficiency
  • Internal high power ferrite magnet system
  • Coated Pro Flat cellulose cone
  • Solid steel basket with low-resonance structured coating
  • Low mounting depth due to Pro Flat technology
Tweeter
  • Titanium-coated polycarbonate tweeter
Woofer
  • coated paper cone
