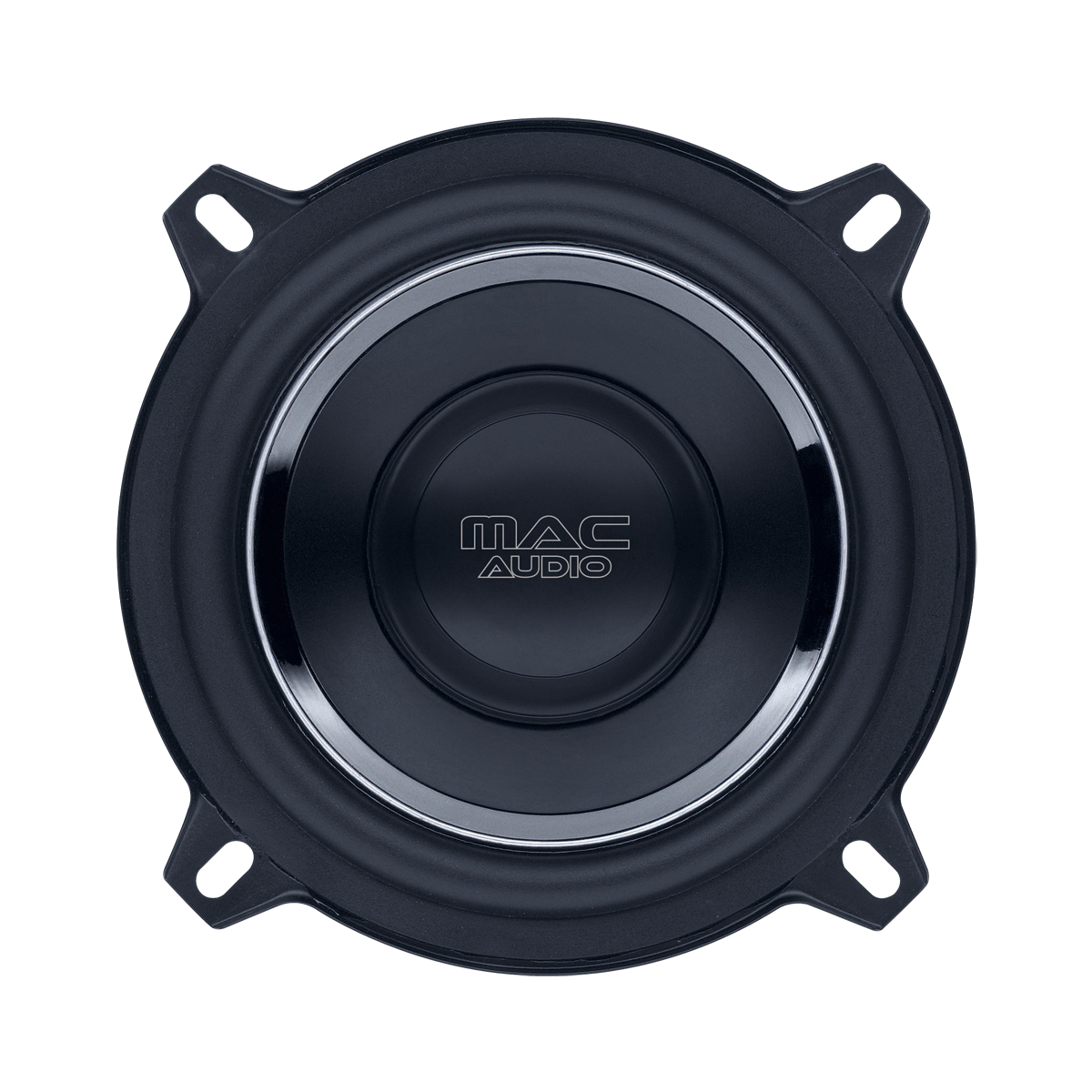

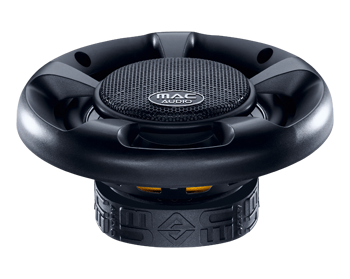

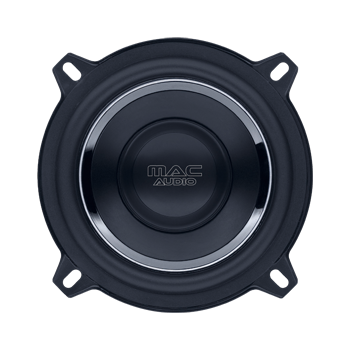

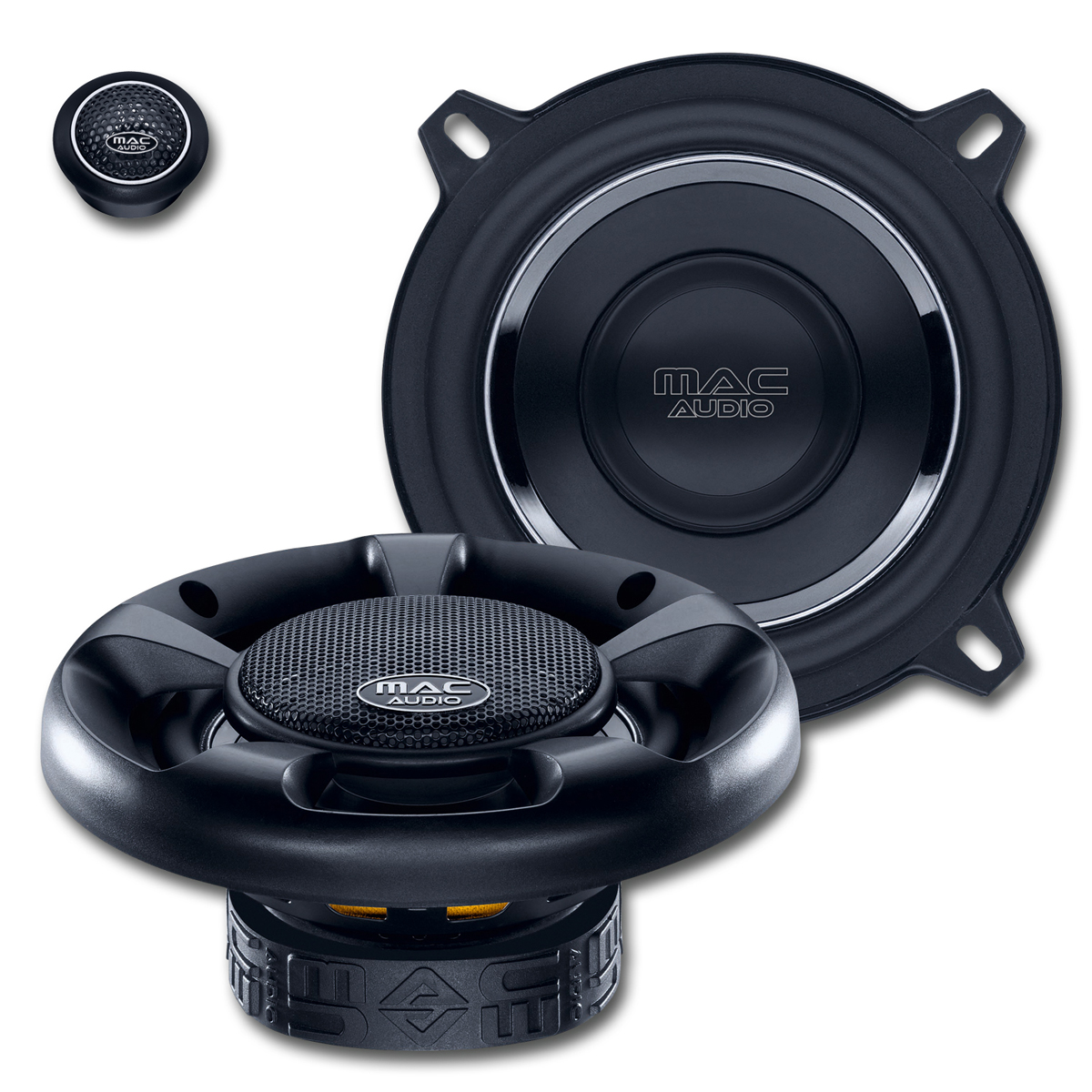

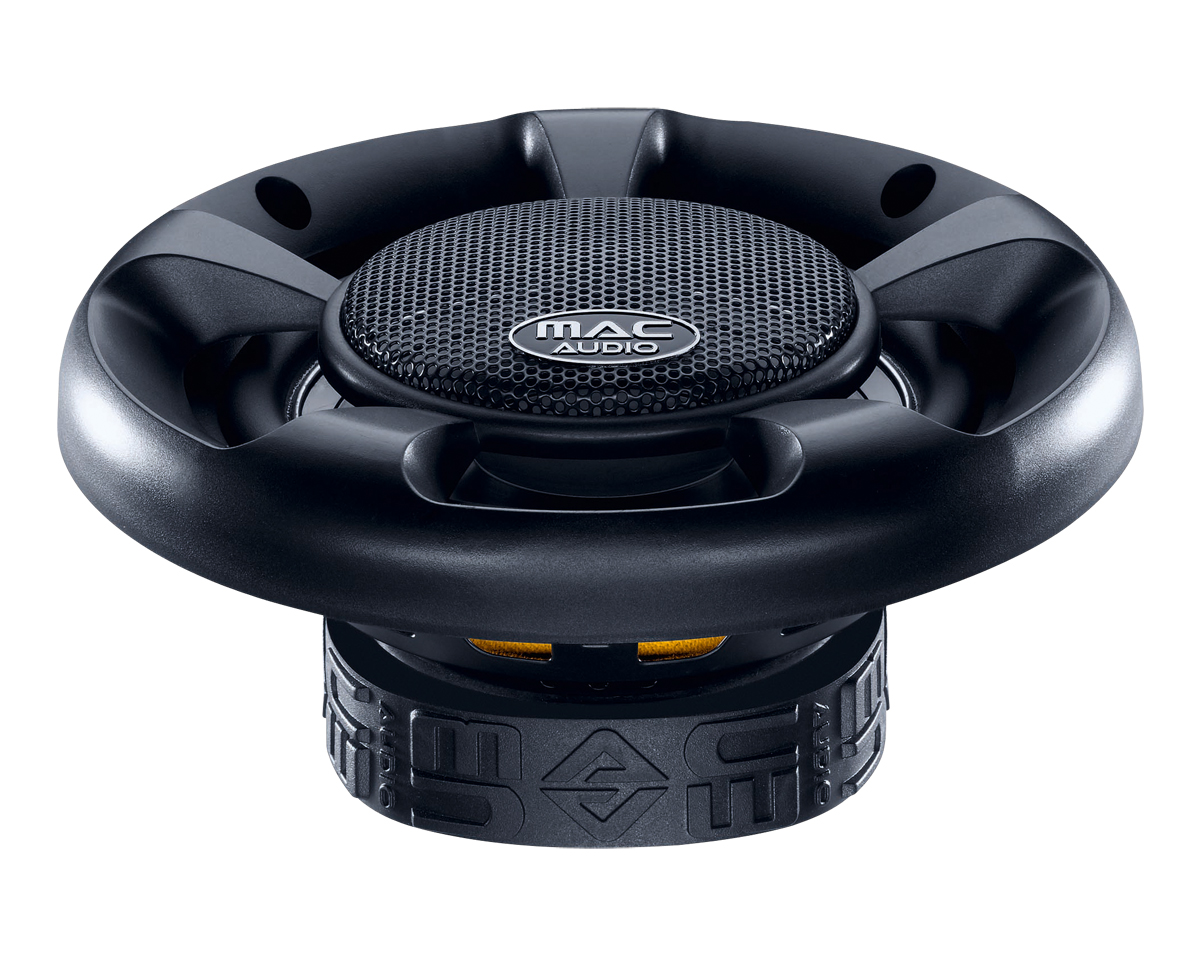

MPExclusive 2.13

2-way component system

A balanced and unadulterated sound: this is the hallmark of the MPExclusive 2.13 2-way component system.

2-way component system

At the heart of the MPExclusive 2.13 2-way component system is without doubt the injection moulded polypropylene cone with enhanced edge reinforcement. This effectively eliminates disruptive partial vibrations and produces a particularly natural sound pattern. To ensure this doesn´t change even when operated at high loads, a long-throw rubber surround and sturdy steel basket with additional voice coil ventilation have been integrated in the system. The overall package is rounded off by a Klippel-optimised suspension element and magnetic field.

Technical specifications


Principle
  • 2 way compo system
Power Handling
  • 60 / 240 Watt
Impedance
  • 4 Ohms
Crossover frequencies
  • 3800 Hz
Frequency range
  • 38 – 26000 Hz
Sound pressure level
  • 90 dB
DIN-Ø
  • Woofer: 5.25
  • Tweeter: 19 mm
Outer diameter
  • Woofer: 159 mm
  • 46 mm tweeter
Cutting out
  • Woofer: 113 mm
  • 39 mm tweeter
Mounting depth
  • Woofer: 52 mm
  • Tweeter: 12 mm
Mounting hight
  • Woofer: 23 mm
  • Tweeter: 10 mm

Highlights


Features
  • Magnet protection cover in Mac Audio design
  • Long excursion rubber surround
  • Injection polypropylene cone with additional edge reinforcement
  • Design protection cover with aluminium diamondcut logo
Principle
  • 2 way compo system
Membrane capacity
  • Tweeter: Alu coated fabric
  • Woofer: Injection Polypropylene
Tweeter
  • Aluminium coated tweeter cone
