MPExclusive 12

Subwoofer chassis for enclosed structures and bass reflex enclosures


The highly resilient 30 cm MPExclusive subwoofer chassis is ideal for installation in enclosed structures or bass reflex enclosures.

Subwoofer chassis for enclosed structures and bass reflex enclosures

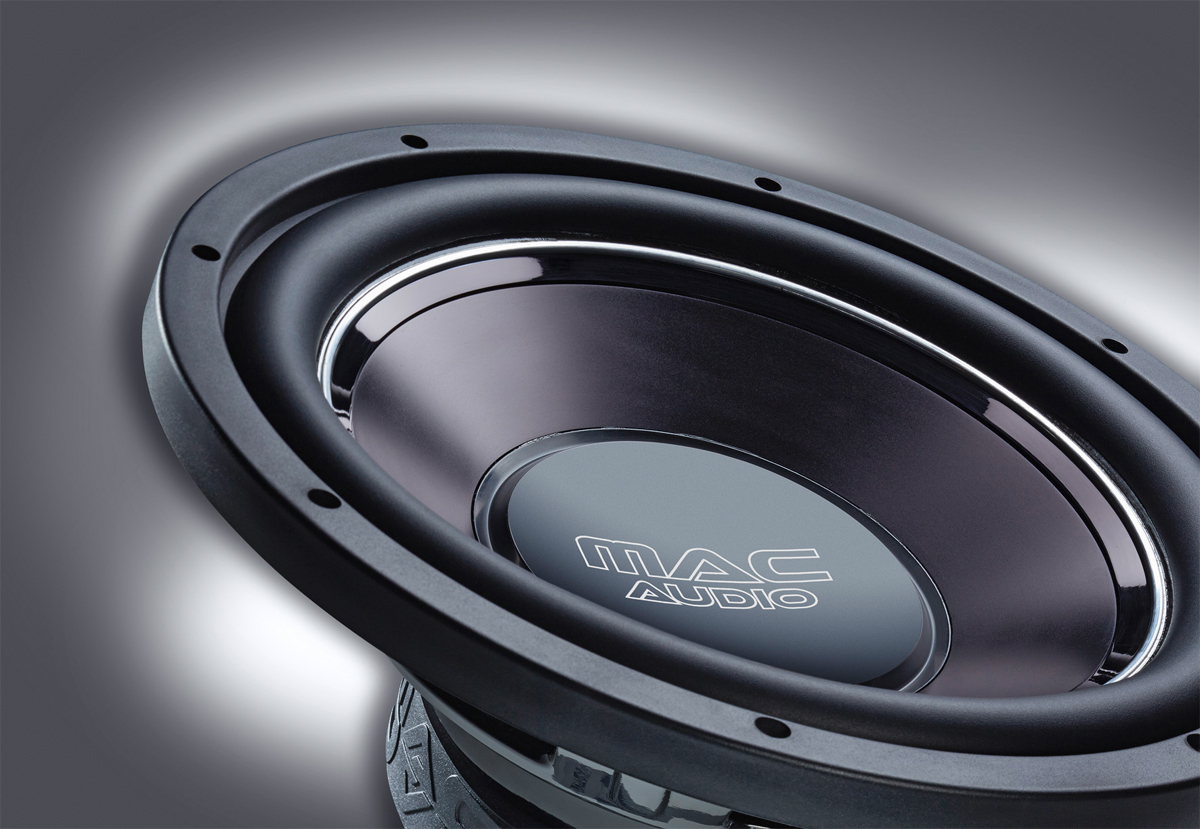

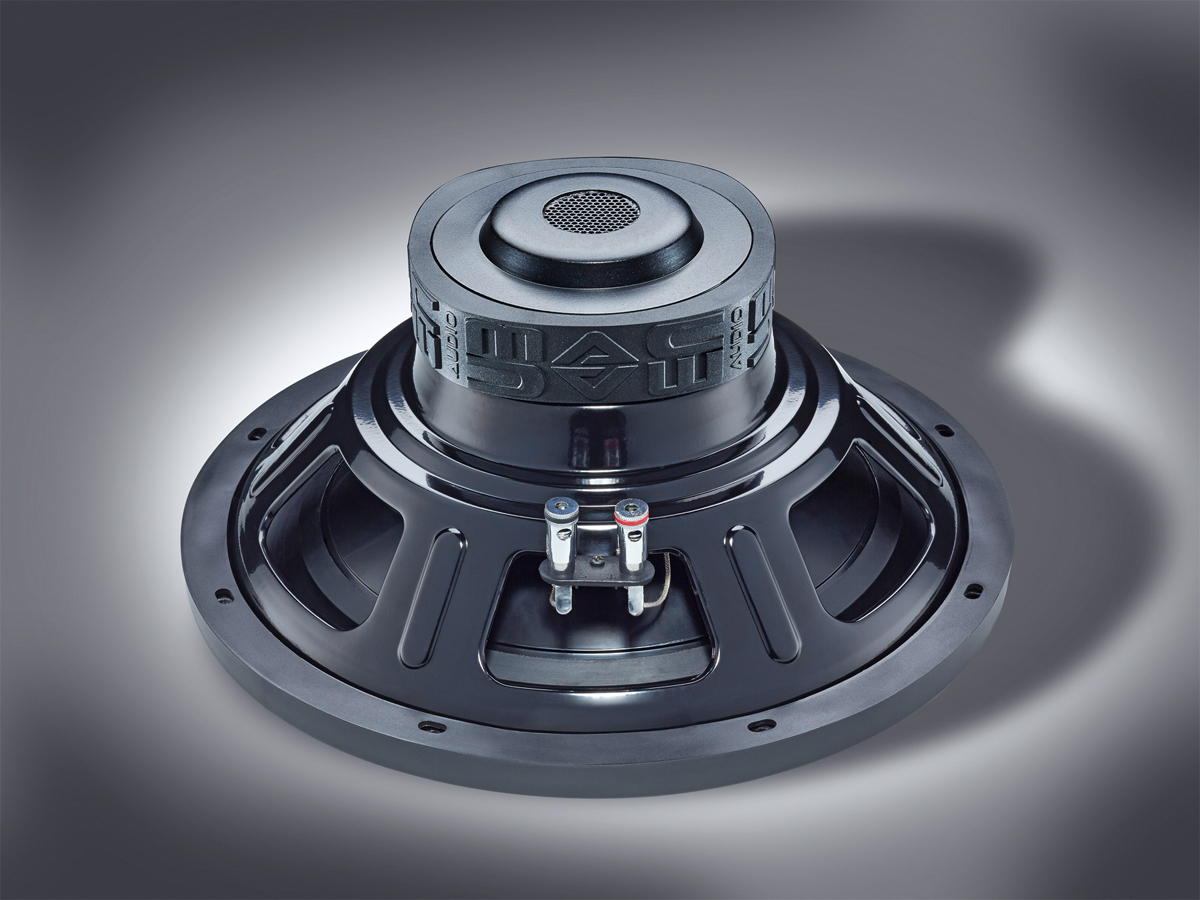

The 30 cm MPExclusive 12 subwoofer chassis is ideal for installation in enclosed structures and bass reflex enclosures. Thanks to high performance components, such as the polypropylene injection cone with enhanced edge reinforcement, 2“ voice coil and extremely resilient long-throw rubber surround, the MPExclusive 12 offers a maximum sound pressure of up to 90 dB. The powerful drive is realised by a high-power magnet, and the powder coated steel basket ensures there is hardly any resonance. A decorative ring conceals the mounting screws during installation.

Technical specifications


Impedance
  • 4 Ohms
Frequency range
  • 21 – 500 Hz
Sound pressure level
  • 90 dB
DIN-Ø
  • 300 mm
Cutting out
  • 280 mm
Mounting depth
  • 130 mm
Power Handling (RMS/Max)
  • 300/1000 Watts

Highlights


Features
  • Long excursion rubber surround
  • Chrome-plated push term
  • Decorative ring covering the fixing screws
  • Injection polypropylene cone with additional edge reinforcement
