Ice Cube 12

Subwoofer chassis for enclosure installation

Thanks to selected materials and components the Ice Cube 12 subwoofer chassis is able to deliver powerful, distortion-free acoustics in an enclosed or bass-reflex housing.

Subwoofer chassis for enclosure installation

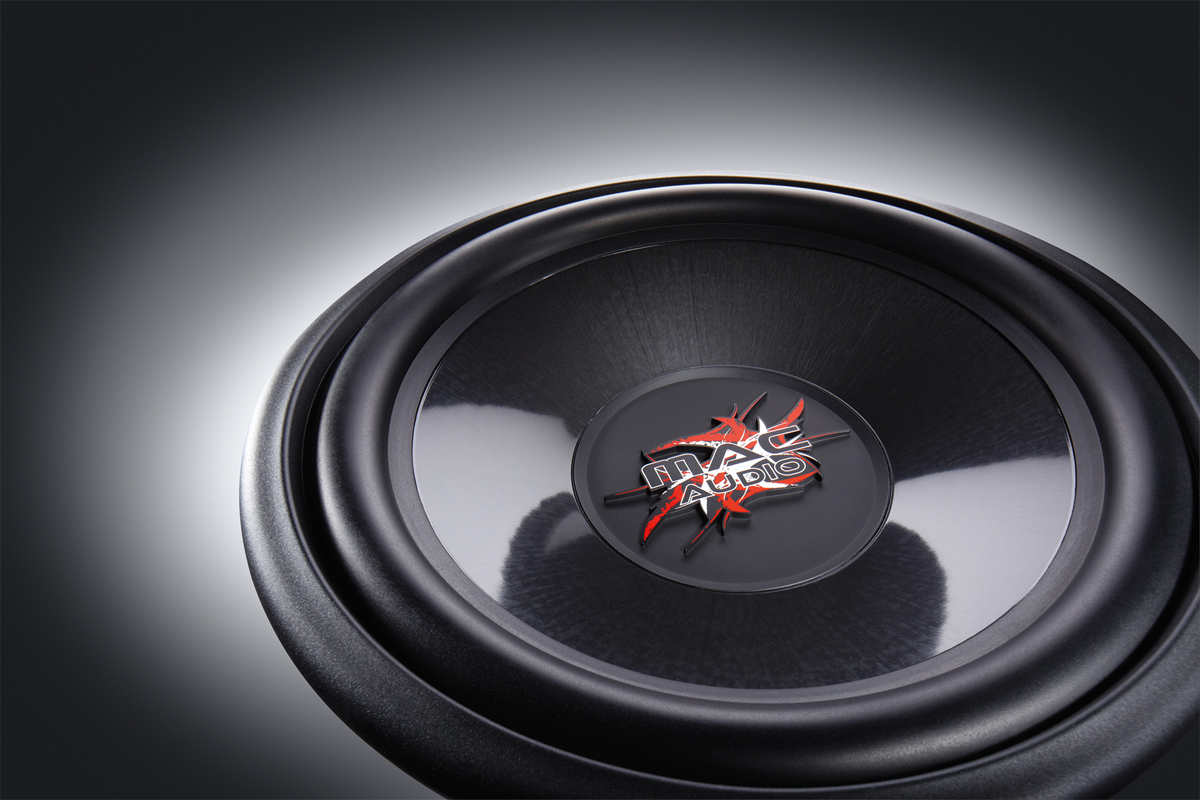

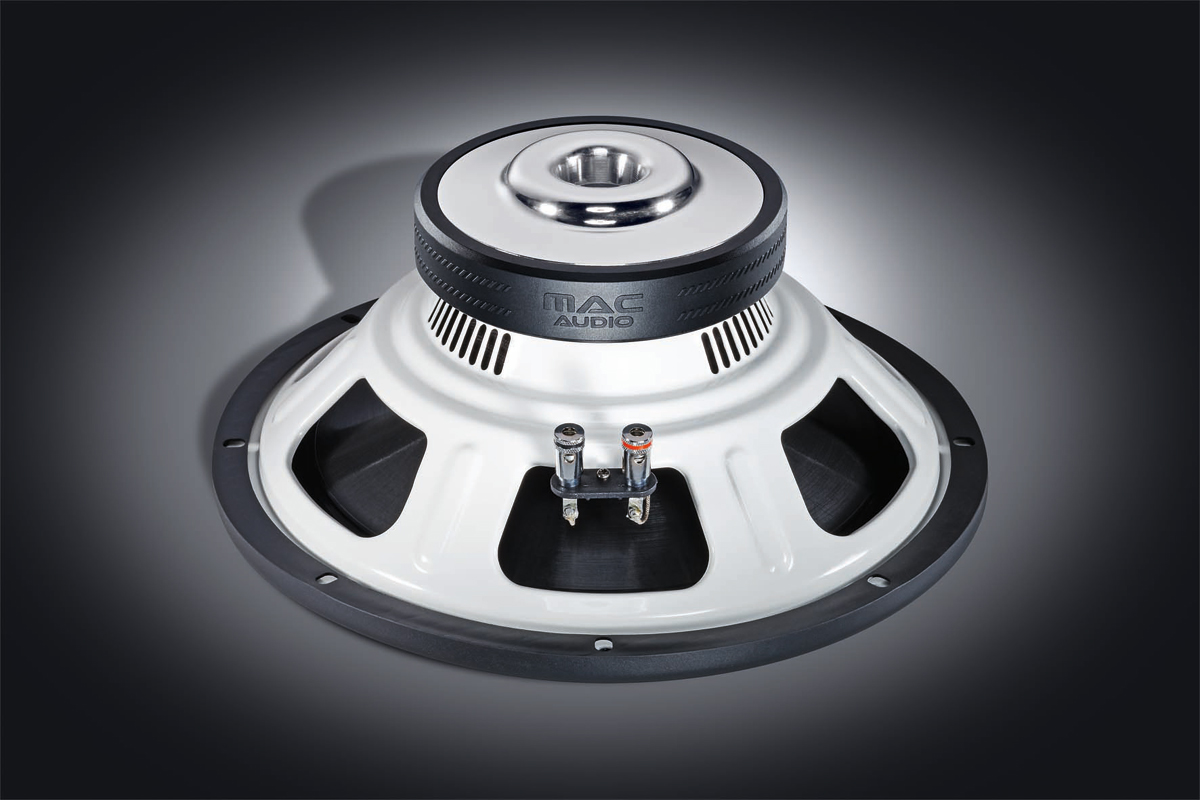

The Ice Cube 12 30 cm subwoofer has been designed for an enclosed bass reflex housing and is equipped with high performance components for a distortion-free and powerful sound. The torsionally rigid and low-resonance polypropylene injection cone is driven by a powerful 40oz magnet and a 2" high performance voice coil with Japanese TOTOKU wiring. The multi-layer sturdy steel basket dampens any remaining resonance and enhances resilience. The chic decorative ring skillfully conceals the otherwise visible mounting screws.

Technical specifications


Thiele-Small-Parameter (TSP)
  • Resonance frequency (fs): 27 Hz
  • Electrical Q (Qes): 0.51
  • Mechanical Q (Qms): 5.13
  • Total Q (Qts): 0.47
  • Voice coil DC resistance (Rdc): 3.3 ohm
  • Maximum linear excursion (Xmax): 22 mm
Impedance
  • 4 Ohms
Frequency range
  • 21 – 500 Hz
Sound pressure level
  • 90 dB
DIN-Ø
  • 300 mm
Outer diameter
  • 317 mm
Cutting out
  • 282 mm
Mounting depth
  • 130 mm
Power Handling (RMS/Max)
  • 400 / 1200 Watts

Highlights


Features
  • 2“ high-performance voice coil with Japanese TOTOKU wire and additional ventilation
  • Aluminium voice coil support
  • High power 40oz magnet with protection cap
  • PP injection cone

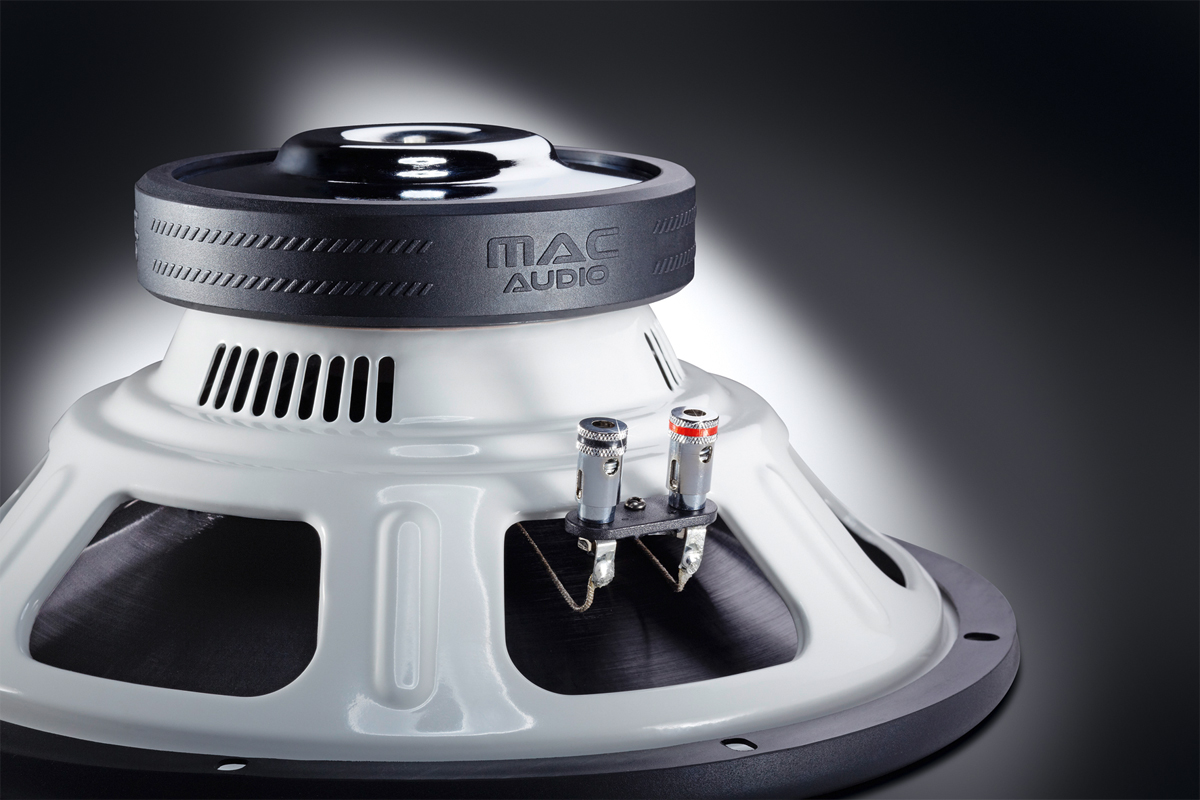

  • Chrome-plated push term
  • Decorative ring covering the fixing screws
Thiele-Small-Parameter (TSP)
  • Resonance frequency (fs): 27 Hz
  • Electrical Q (Qes): 0.51
  • Mechanical Q (Qms): 5.13
  • Total Q (Qts): 0.47
  • Voice coil DC resistance (Rdc): 3.3 ohm
  • Maximum linear excursion (Xmax): 22 mm
Cabinet possibilities
  • Liter information incl. speaker and bass reflex port(s)
