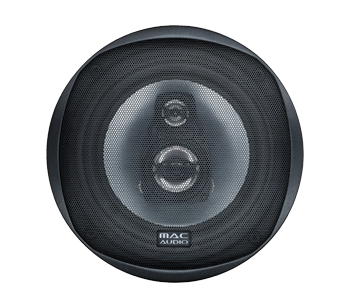

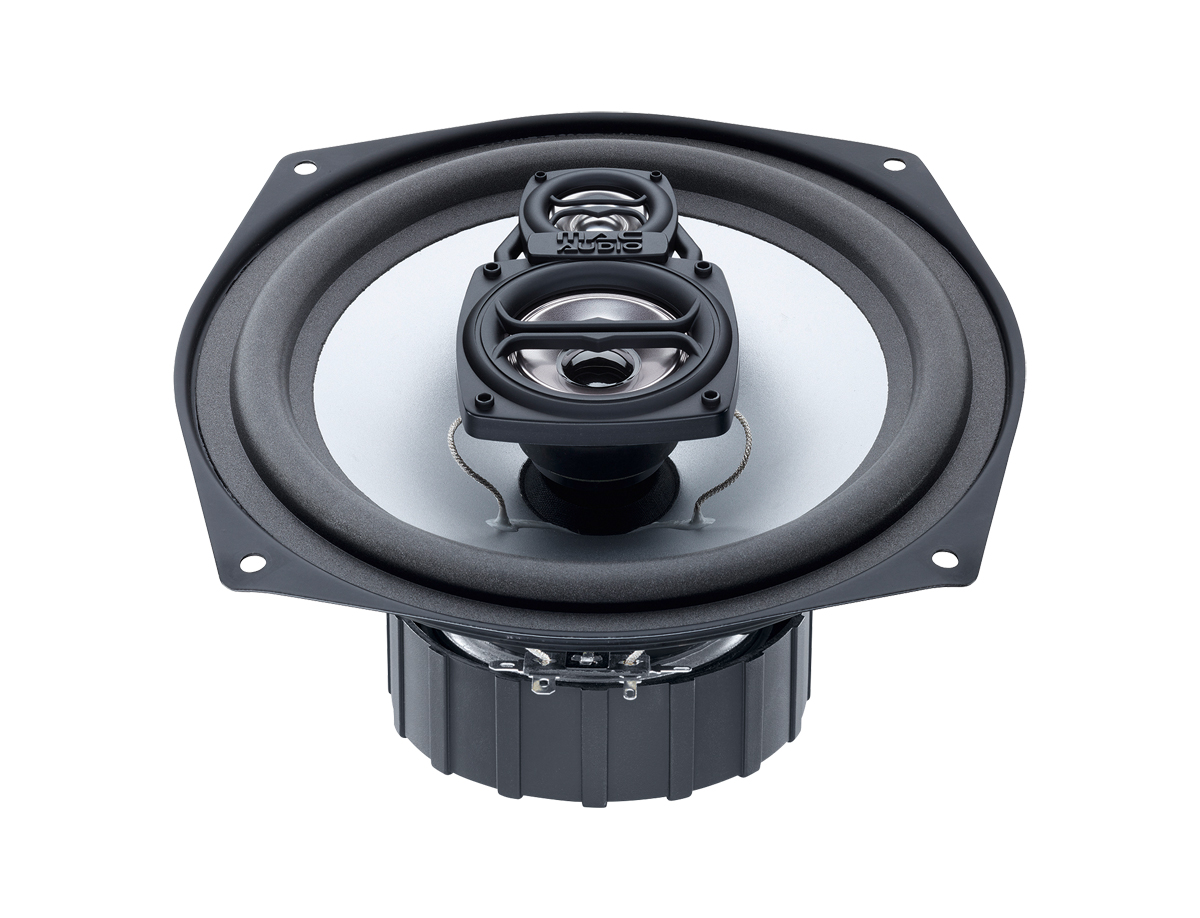

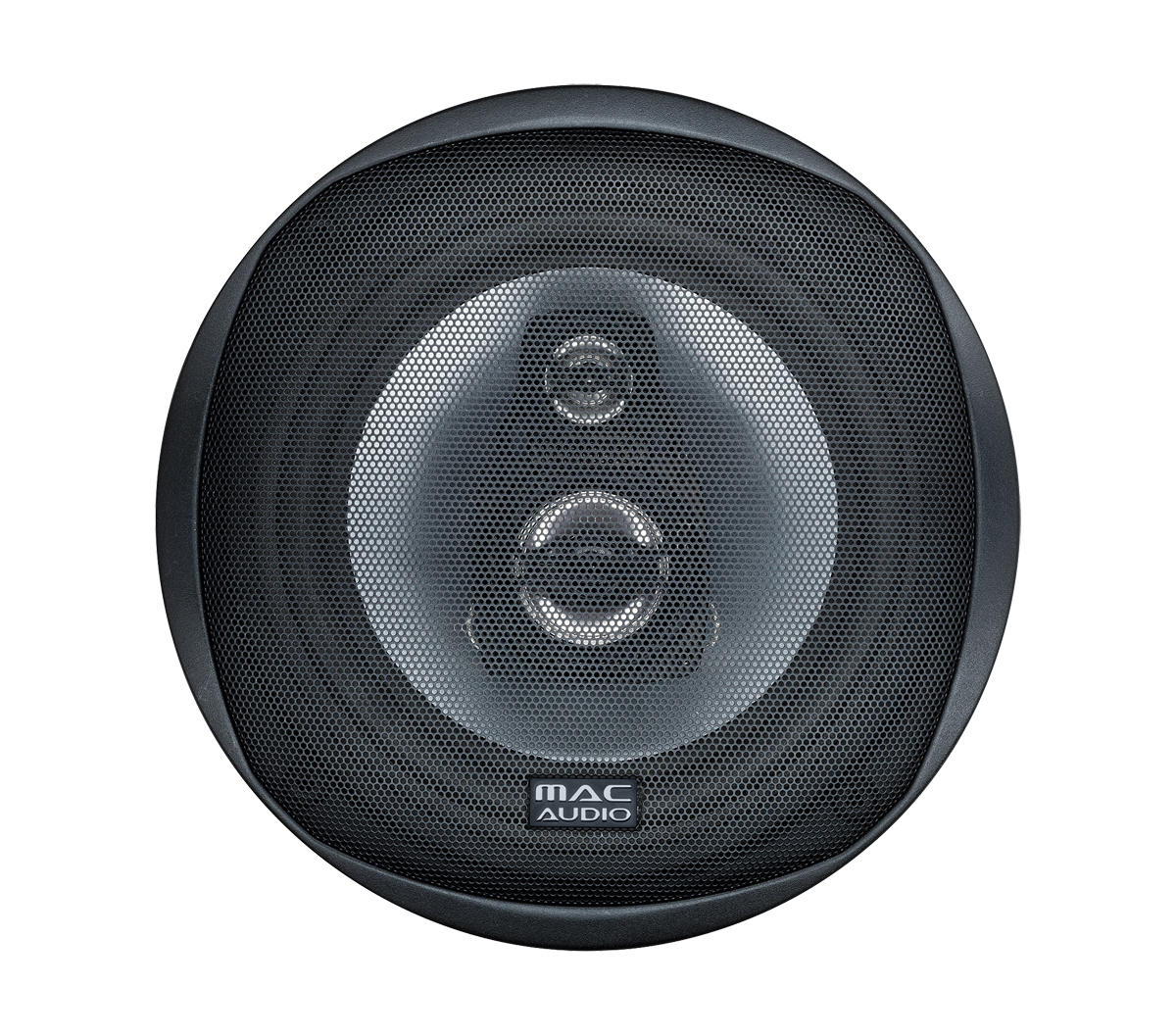

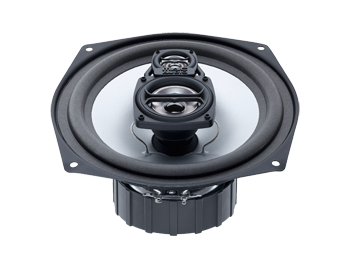

Racer 320

3-way triaxial system with integrated crossover


Meaty sound at an excellent price-performance ratio. The Racer 320 sound transducers feature extreme load-bearing capacities and high sound pressure while the lightness of the coated paper cone is responsible for excellent levels of efficiency. A PTC protective element stands guard over the mid-range and tweeter speakers.

3-way triaxial system with integrated crossover


The Racer 320 sound transducers are characterised by extremely high resilience and tremendous sound pressure. In spite of the large cone surface area, the coated paper cone´s light mass is not only responsible for excellent levels of efficiency but also for promoting rapid response behaviour. A PTC protective element stands guard over the mid-range and tweeter loudspeakers. The three-way triaxial system is equipped with silver-plated screw terminals, the powerful magnet is protected by a cover.


Technical specifications


Principle
  • 3 way triaxial system
Power Handling
  • 100 / 400 WattS
Impedance
  • 4 Ohms
Frequency range
  • 22 – 34000 Hz
Sound pressure level
  • 92 dB
DIN-Ø
  • 200 mm
Cutting out
  • 185 mm
Mounting depth
  • 72 mm

Highlights


Features
  • PTC protective element for the mid-range and tweeter unit
  • High-performance magnet with magnet cover
Principle
  • 3 way triaxial system
