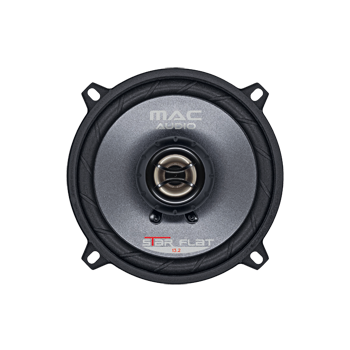

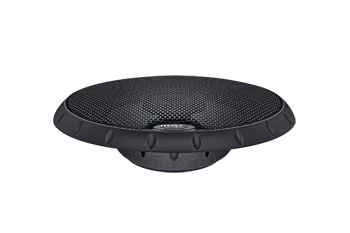

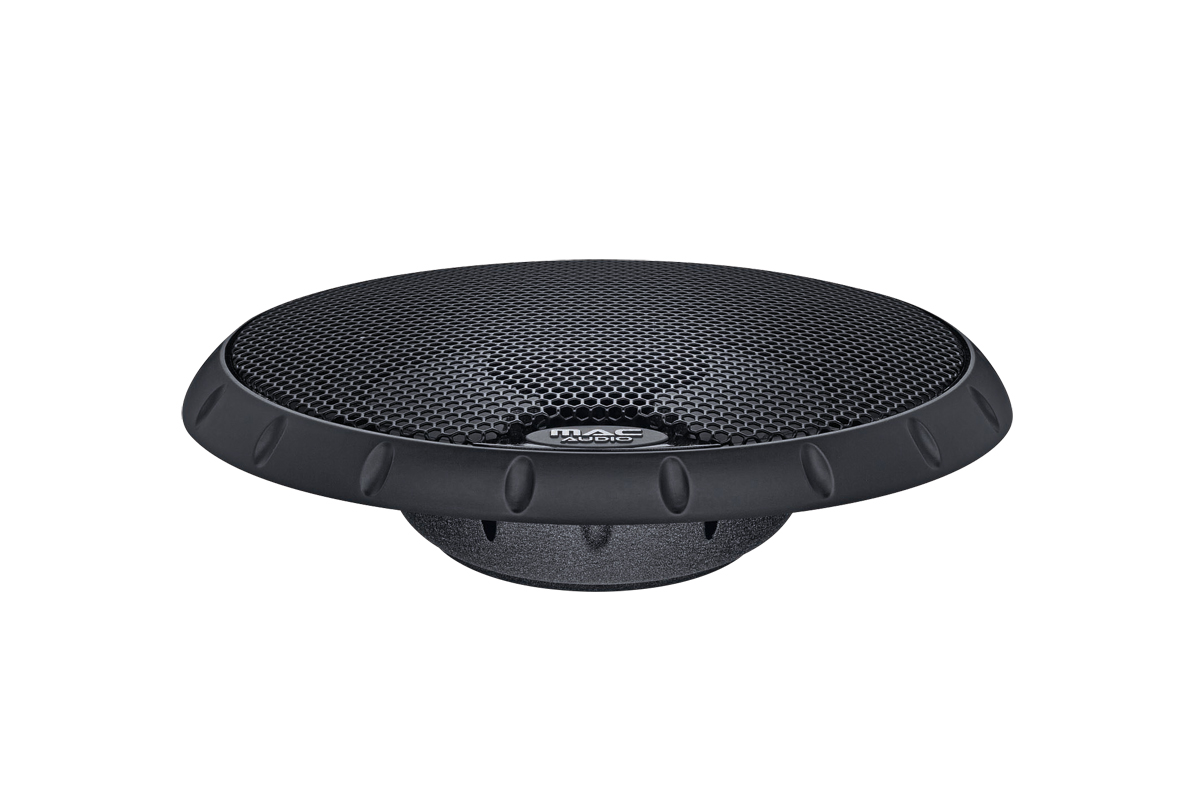

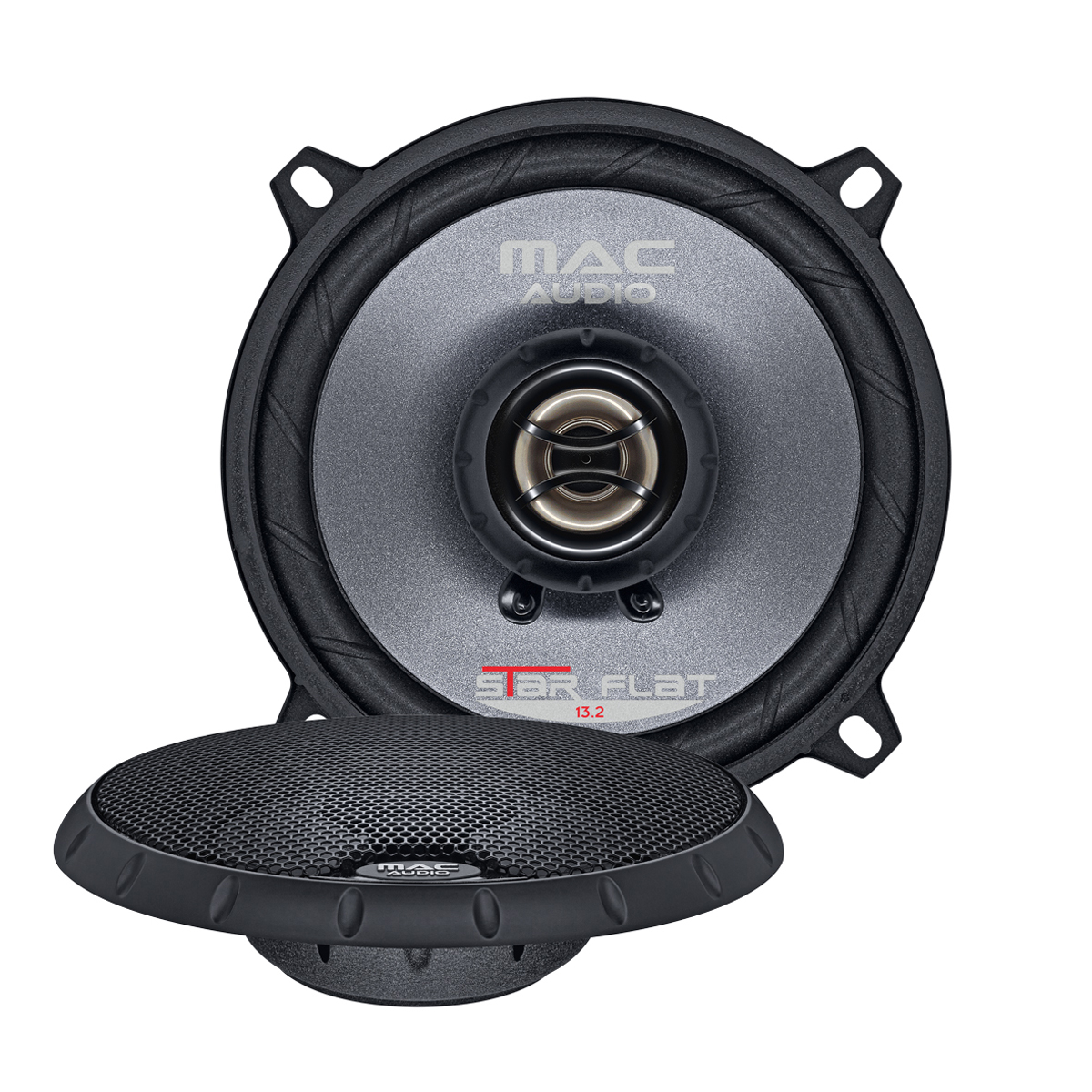

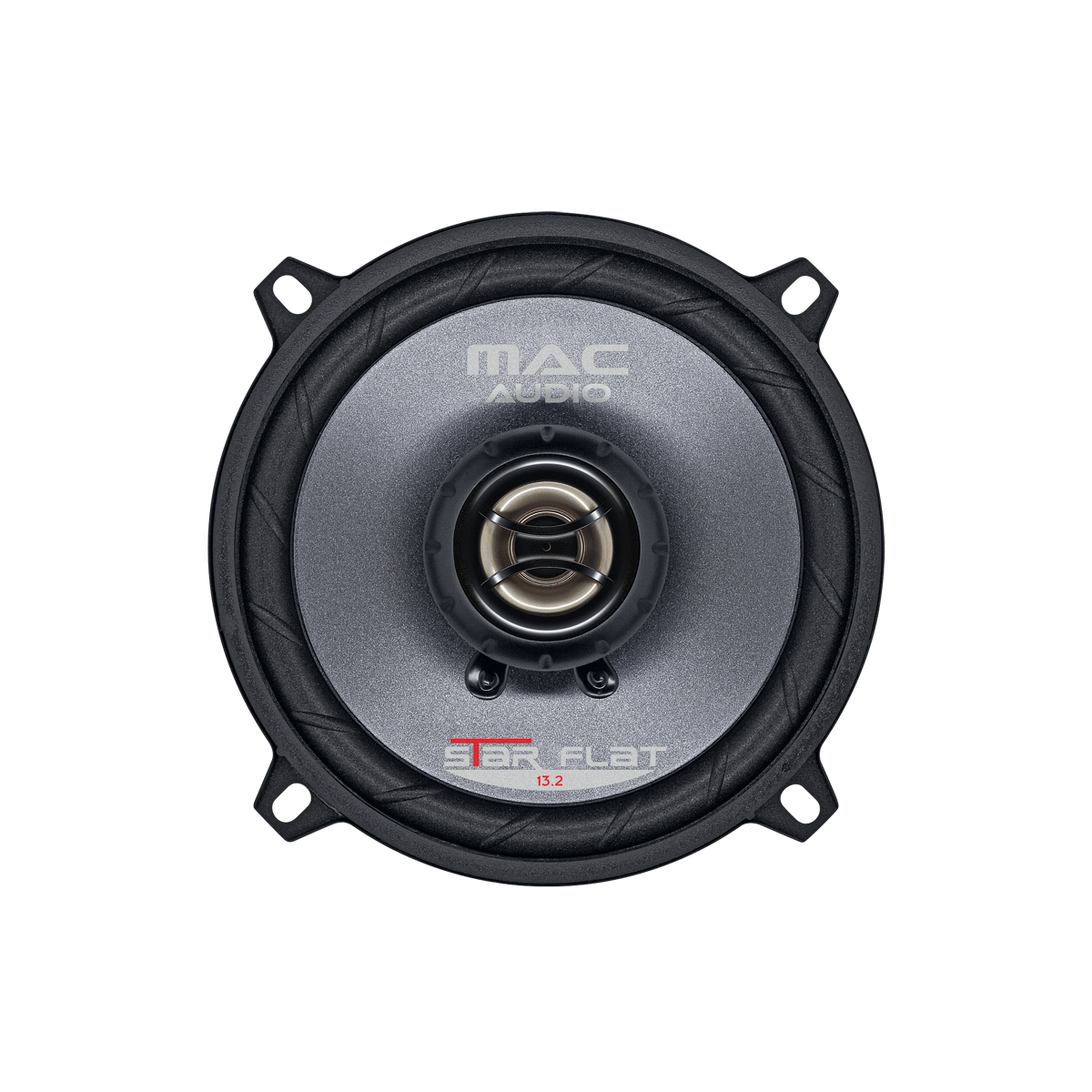

Star Flat 13.2

2-way coaxial system with low installation depth

2-way coaxial system with low installation depth

The Pro Flat Technology ensures minimal installation depth for the powerful and efficient Star Flat 13.2 2-way coaxial system. The standardized Euro DIN cage guarantees easy installation of the stable steel cage with a low-resonance textured coating. Acoustic top performance is produced by the internal high-power ferrite magnet system and the 130 mm coated Star Flat paper cone with a dynamic foam bead. Located on top, beneath the stylish cover grille with the diamond cut logo and black rubber coating, is the titanium-coated polycarbonate tweeter.

Technical specifications


Principle
  • 2 way coaxial system
Power Handling
  • 70 / 250 watts
Impedance
  • 4 Ohms
Frequency range
  • 36 – 28000 Hz
Sound pressure level
  • 90 dB
DIN-Ø
  • Woofer: 5.25
Outer diameter
  • Woofer: 196 mm
  • Woofer: 176 mm
Cutting out
  • Woofer: 118 mm
Mounting depth
  • Woofer: 42 mm
Mounting hight
  • Woofer: 21 mm

Highlights


Features
  • Multi-part protection grille including diamond cut logo
  • Coated Star Flat cellulose cone (woofer)
  • Solid steel basket with low-resonance structured coating
  • Low mounting depth due to Pro Flat technology
  • Dynamic foam surround for high efficiency
  • Internal high power ferrite magnet system
  • Euro DIN basket for universal usage
Principle
  • 2 way coaxial system
Membrane capacity
  • Woofer: coated cellulose
  • Titanium coated polycarbonate
Tweeter
  • Titanium-coated polycarbonate tweeter
