Power Star 69.3

3-way Triax system

3-way Triax system

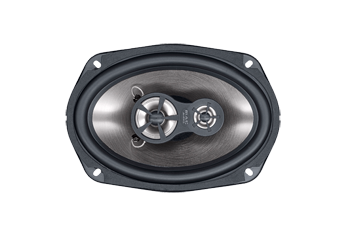

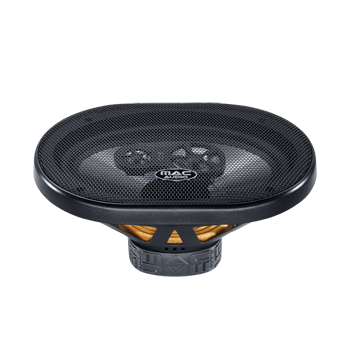

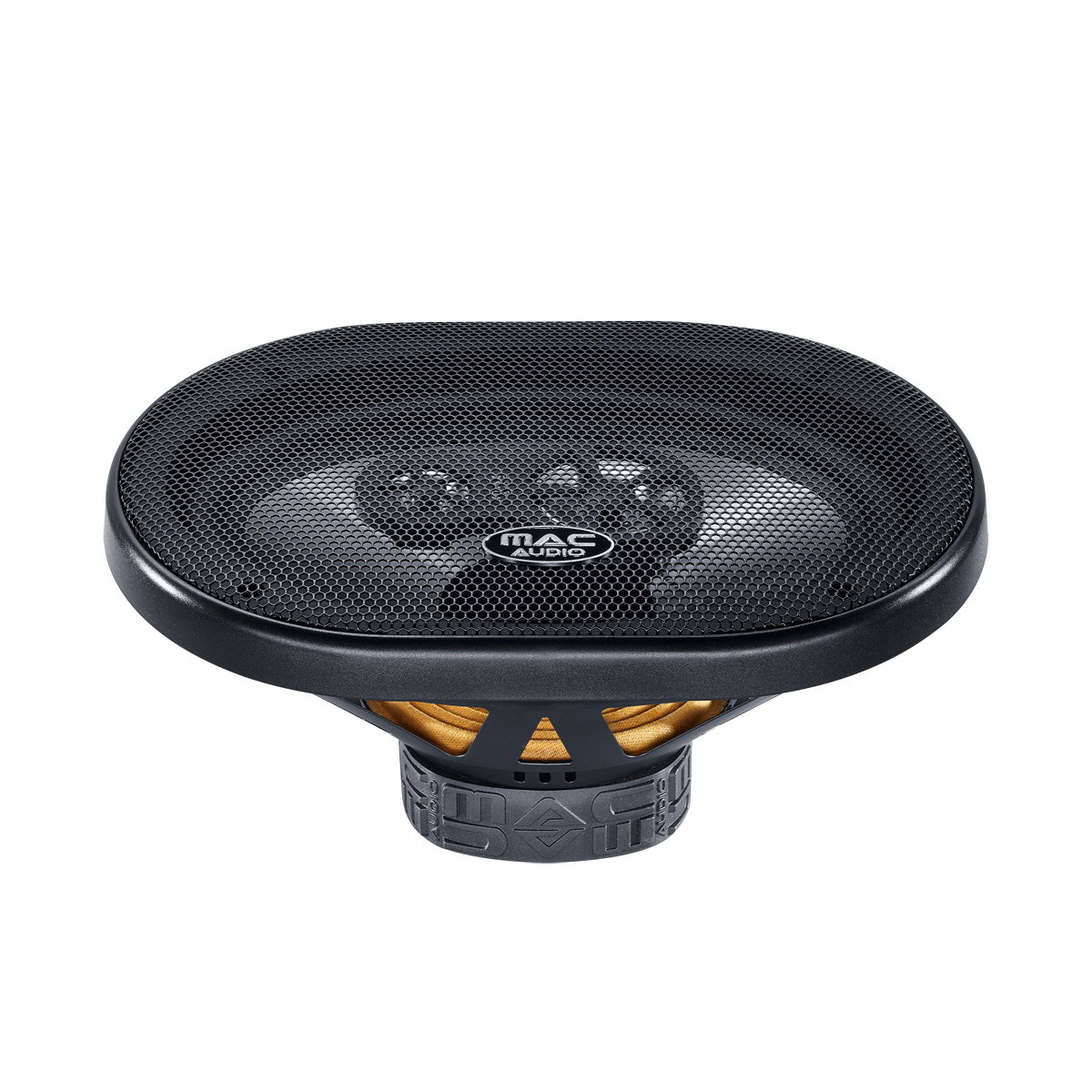

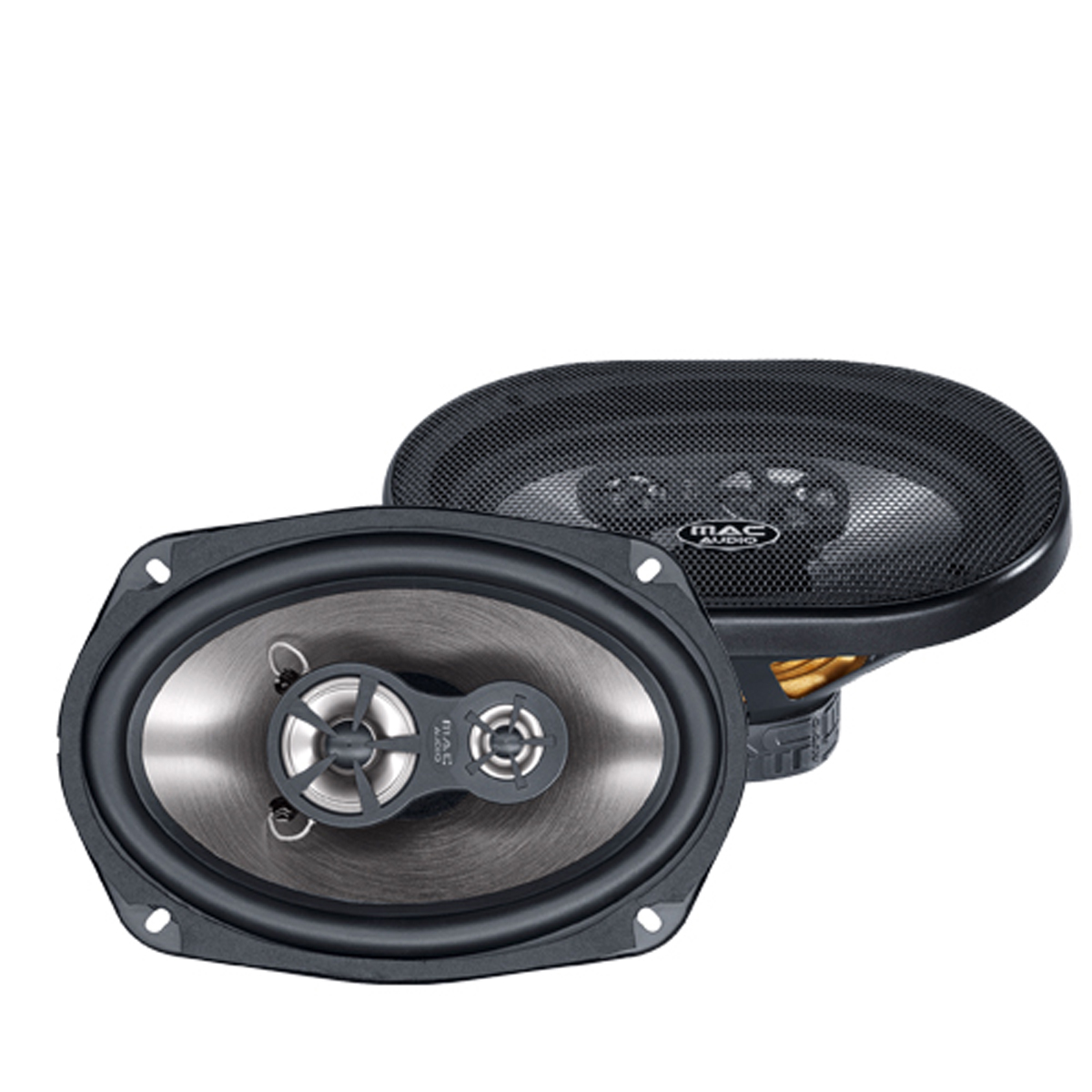

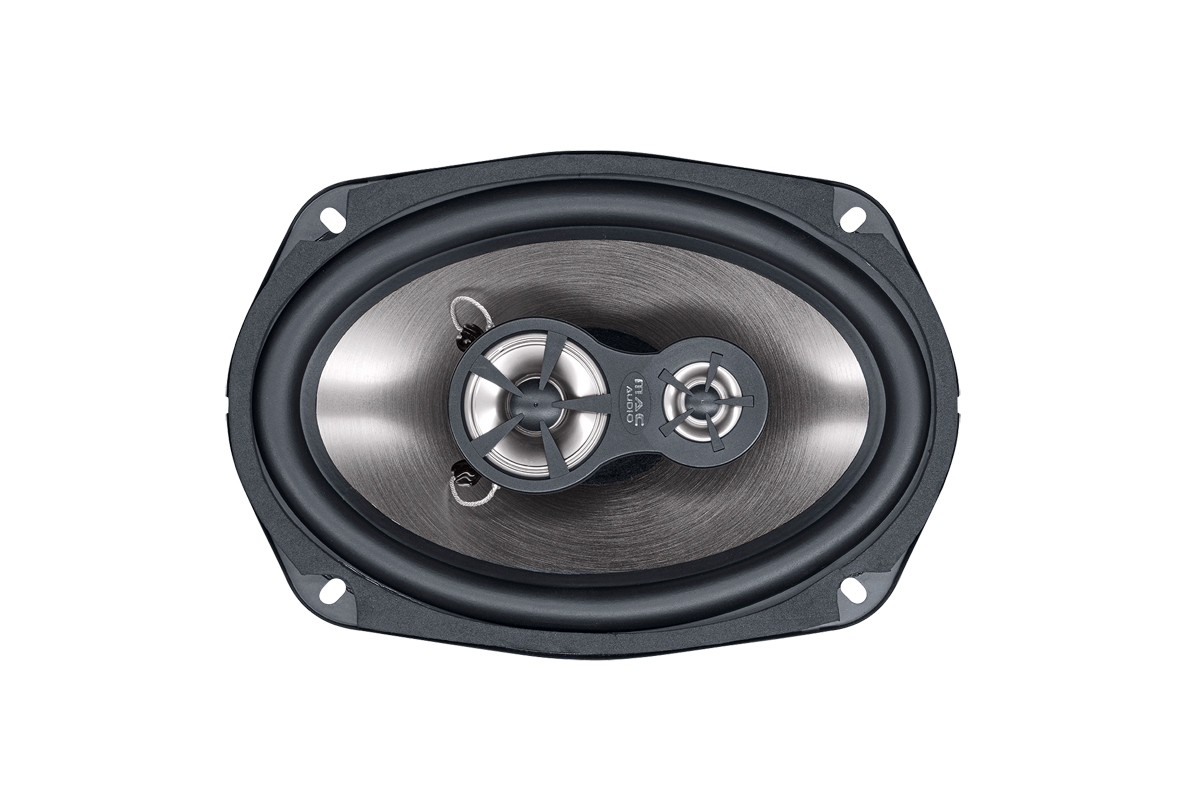

The 3-way Triax system of the Power Star range displays a maximum music power rating of 480 watts and acoustic pressure of 91 dB. These excellent values are achieved with a 150 x 230 mm bass speaker comprising a polypropylene membrane as well as a titanium-coated polycarbonate 50 mm midrange driver and a 13 mm tweeter. The centering and the magnetic field of the structure, which is positioned in a sturdy steel basket with additional voice coil ventilation, has been optimized using the Klippel measuring procedure. This results in a very dynamic and, at the same time, very authentic sound. The 3-way Triax system has an exclusive and stylish appearance with the sturdy cover grill featuring the aluminium diamond-cut logo and the attractive Mac Audio design magnetic field protection ring.

Technical specifications


Power Handling
  • 120 / 480 Watts
Impedance
  • 4 Ohms
Crossover frequencies
  • 2800 / 4200 Hz
Frequency range
  • 28 – 24000 Hz
Sound pressure level
  • 91 dB
DIN-Ø
  • 0.5” mm tweeter
  • Basslautsprecher: 150 x 230 mm
Outer diameter
  • 259 x 178 mm
Cutting out
  • 221 mm x 151 mm
  • 221 mm x 152 mm
Mounting depth
  • 78 mm
Mounting hight
  • 27 mm

Highlights


Features
  • Magnet protection cover in Mac Audio design
  • Long excursion rubber surround
  • Solid hexagon protection cover with aluminium diamond-cut logo
  • Polypropylene cone with titanium hairline finish
  • Suspension and magnetic field optimised with KLIPPEL® measurement system
Membrane capacity
  • Titanium coated polycarbonate
  • Woofer: Injection Polypropylene
